I finished the ceiling for the barn workshop and I added some lighting to the interior. This was my first experiment with scale lighting, I consulted Alan's thread on the SierraWest forum for some advice and I used some of his methods and I modified them a bit. http://www.craftsmankituniversity.com/vanforum/index.php?p=/discussion/778/lighting-clinic

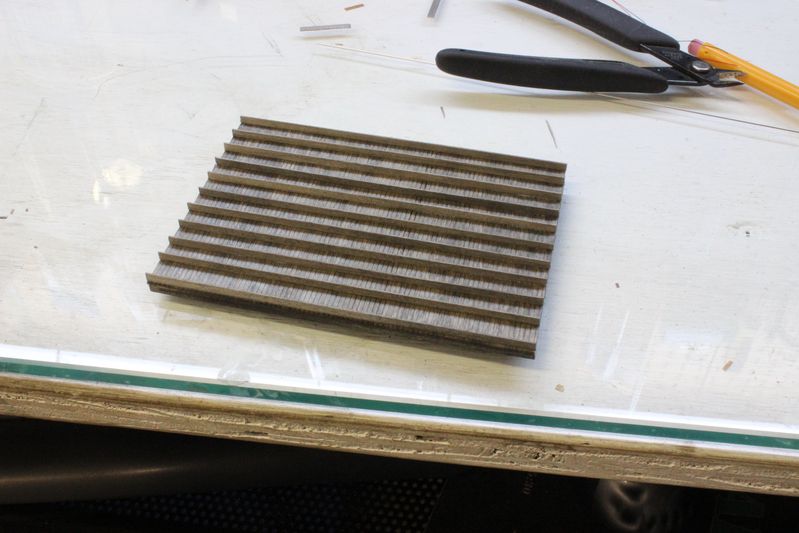

I made the ceiling from some scribed siding I had around and used scale 2x10s for the joists. I matched the spacing with the side wall framework. Most of it will not be easily seen so I'm didn't go overboard with detailing the wood.

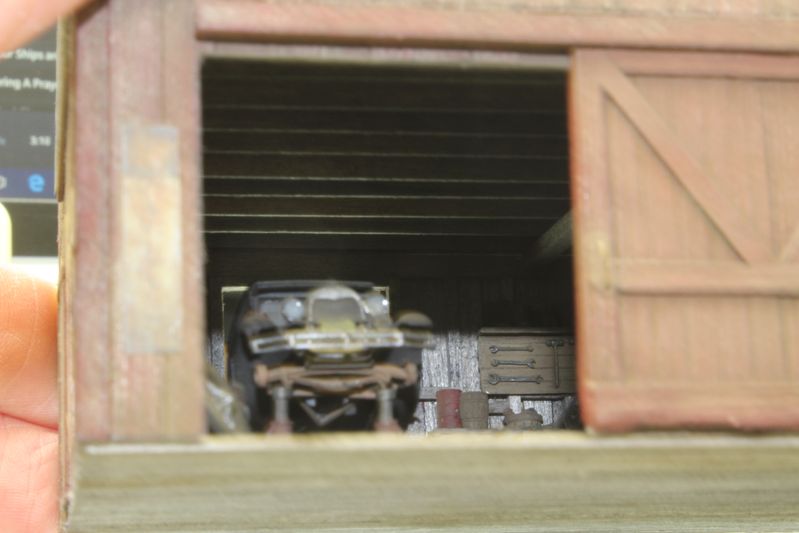

Here it is installed in the barn, no lights added of course. The ceiling will be removable
but not easily. I want to be able to service the lights but I won't be taking the roof off to show the interior.


For my lights I used some micro leds pre-wired I purchased on Ebay. They are incredibly small and still very bright. The lampshade is from Ngineering, its the larger HO 24" one.

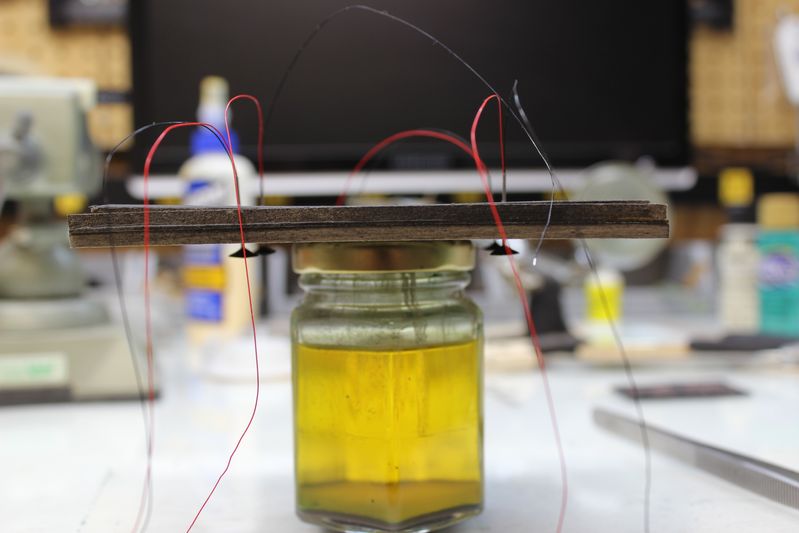

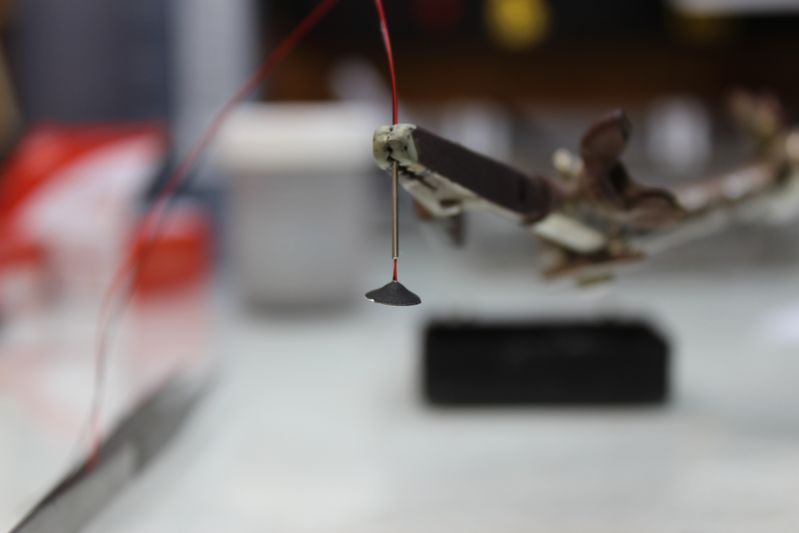

I drilled a small hole in the center about the same diameter as the inside of the tubing. The tubing is Ultra-Thin .032 OD tubing from Ngineering. Its slightly large for HO but not excessive and it works very well for the interior. The wires ran through the tubing with a little bit of work but it wasn't terribly difficult.

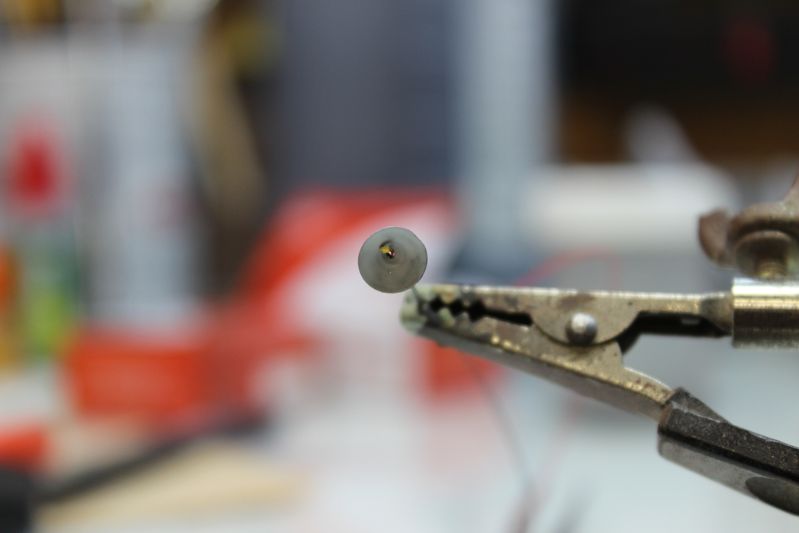

This LED is very small. I don't have the patience to solder one this small. The set I bought on Ebay came from China and they cost me $8.00 for 20 leds pre-wired.

This is how I fed everything through the ceiling.

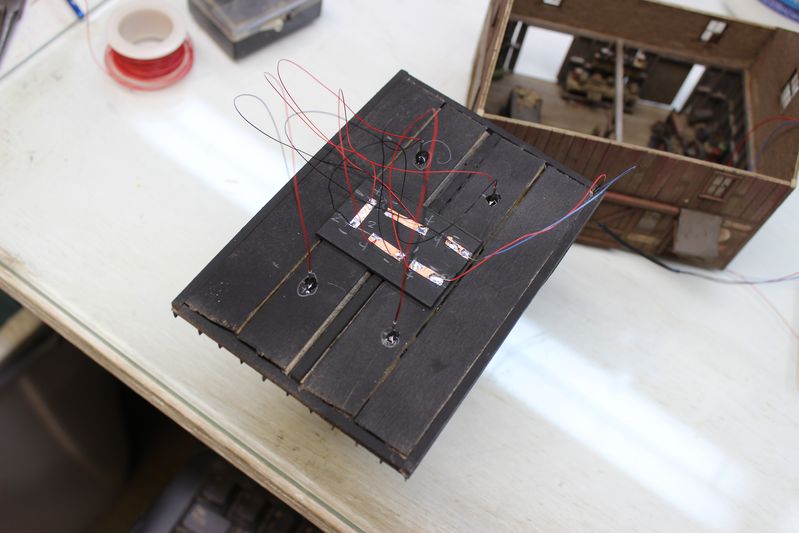

I didn't want to solder the LED wires together so I made this little circuit board using copper tape from Microlumina. I think this is a simple way to wire everything and it's pretty easy to diagnose a problem. I wired all the lights in series, I originally had a current limiter in the circuit but it made the lights far too dim. I should be safe with the 4 LEDs in series with no resistor. Each LED is 3v so 3v x 4 = 12v and I'm using a 12 power supply. I may add a small resistor to darken the lights a bit.

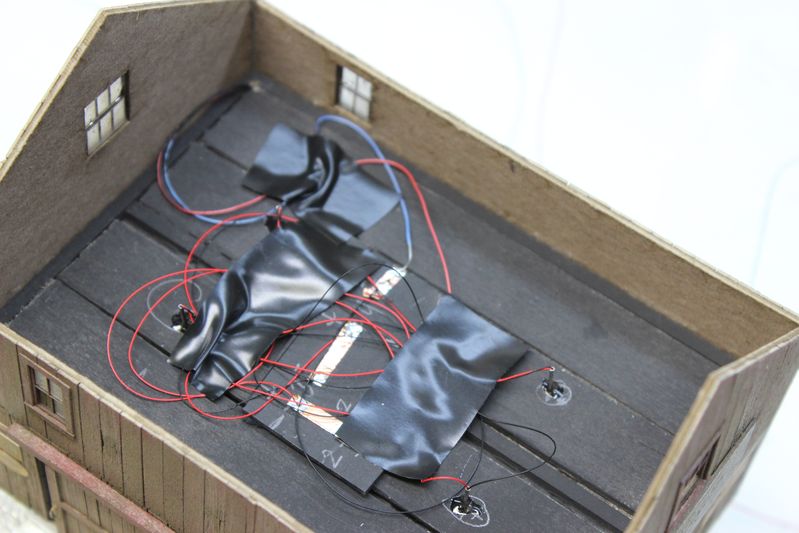

I left lots of lead wire on everything and I just taped it down with electrical tape. I will cover everything with black construction paper so you can see the wires from the upper windows.

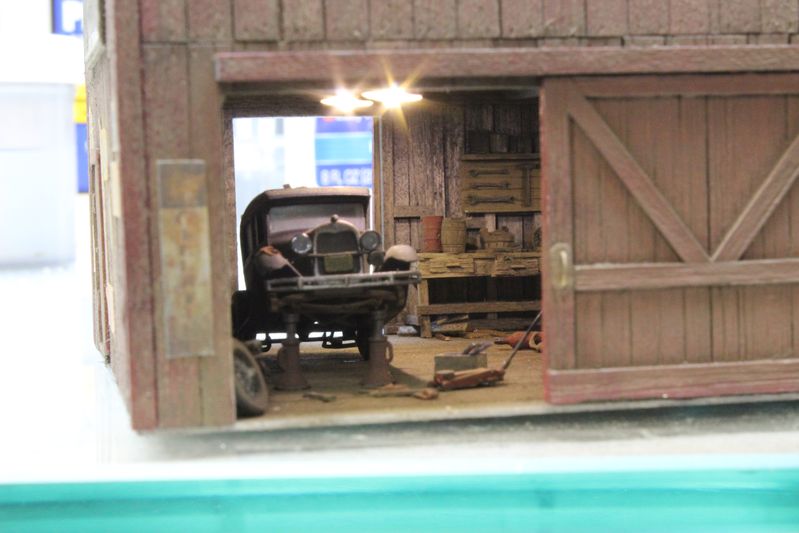

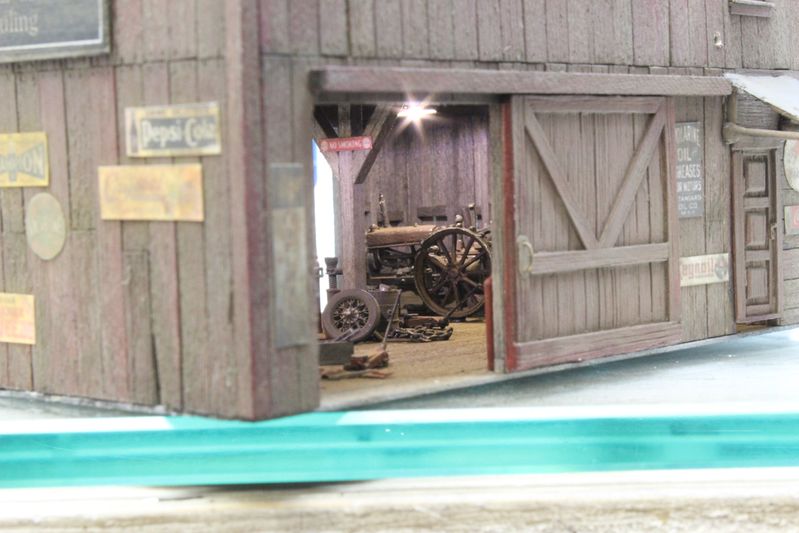

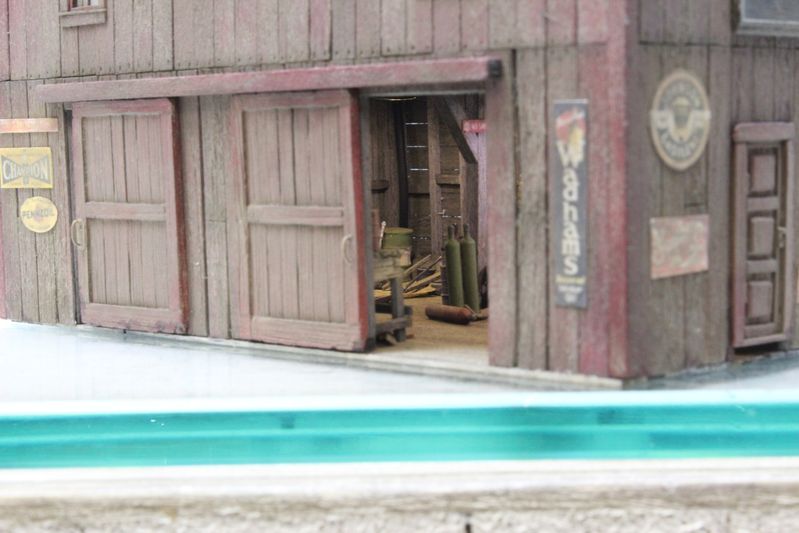

Here is how the lights look installed. They are a tad bright, maybe out of scale brightness but they do a good job showing off the interior so I may leave them bright.

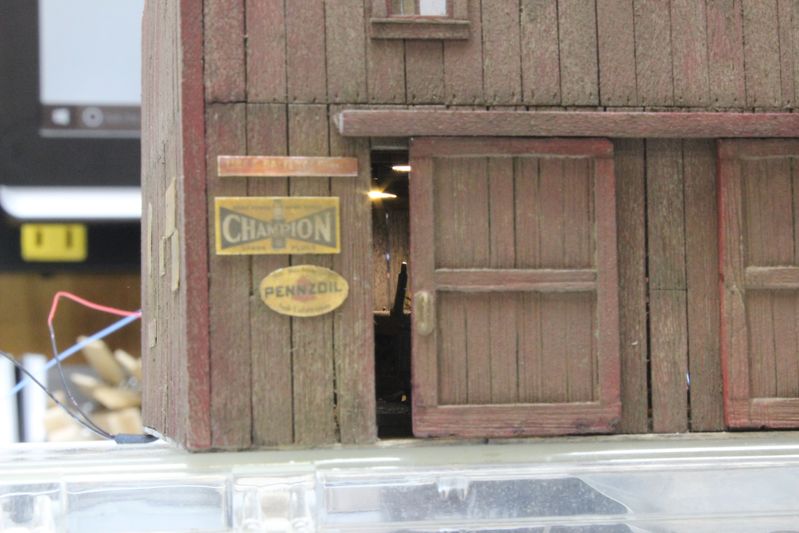

If you look in the very corner of this picture you can see were I ran the wires down the wall. I heatshrinked the wires together and painted them black.

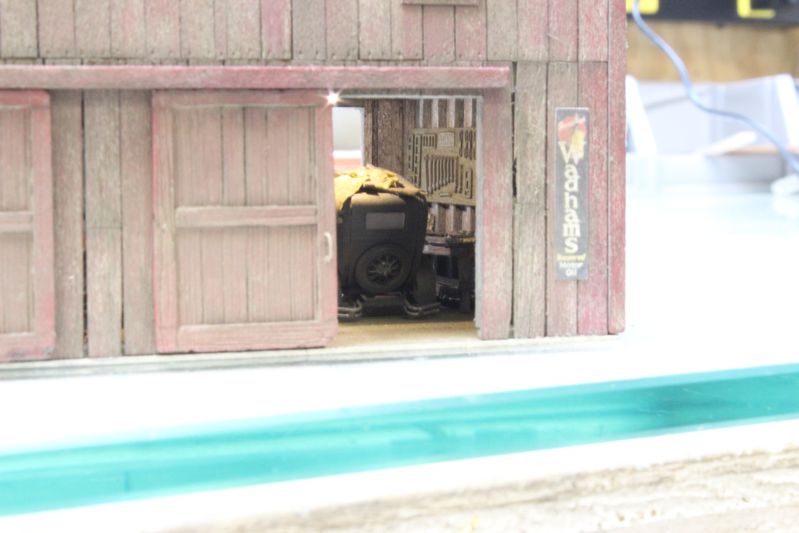

The lights really bring the interior to life. I have to give credit to Alan (nextceo on the SierraWest forum) for inspiring me to do it right, the lights in his repair shed were the inspiration for me to take the time and make it as real as I could.

Thanks for checking in. Next step is the roof.
