Extension to the PRR Bellevue Sub Branchline

[PRR Modeler]

I have a approximately 30' x 12' layout of a fictitious branch line of the PRR Bellevue Sub. It has a single mainline in a folded dog bone that you can walk into the center of the layout. I just started a 1' x 10' extension on the front of the layout to service Pennsy's LCL loads and trailers on their TrucTrain flat cars. The time frame is the late 1940's-mid 1950's.

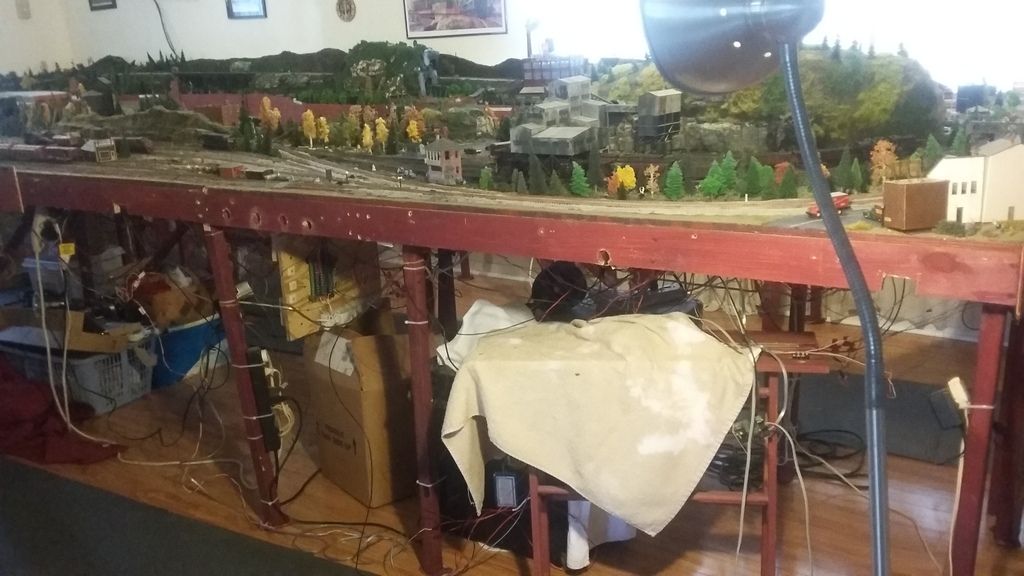

This is a picture of the extension area. Please pardon the mess. I have already added the extension wiring and cabling that is just hanging loose now. Today I bought the wood for the job and cut to size the 4 outside pieces.



[S&S RR]

Curt


Welcome to the forum.  It's great to see another layout in the expansion mode.  I look forward to following your progress and seeing more of your layout.

[Powersteamguy1790]

Welcome to the forum Curt. Have fun working on that extension.

Stay cool and run steam........

[jimmillho]

Welcome to the forum Curt

Jim

[ak-milw]

Welcome!

[PRR Modeler]

Thank you for the warm welcome. Since I won't be doing any modeling today I have a picture of a coaling trestle I made a couple of years ago. Since this picture was taken I have added a heating oil component to the business. Of course the oil has to come in by tank car. The piers are actually "N" scale and worked perfectly for the project.

[Zephyrus52246]

Welcome, Curt.  Looks like a nice layout.

Jeff

[cuse]

Nice work Curt!


John

[GPdemayo]

Welcome Curt.....keep those pictures coming.

[PRR Modeler]

Thanks everyone. Today I had to go to plan B because of the rainy weather here. I had wanted to finish the framing but instead I installed the #5 PECO Insulfrog T/O (the size and type I use for everything). Before installation I solder jumpers and paint the rails (latex rust color). When I solder it in place, I only solder the far side of the joiner so I never solder the actual T/O.

After it was installed I checked it with a level and ran a loco back and forth without issue. This was also a test of my expansion of the electrical and DCC system.

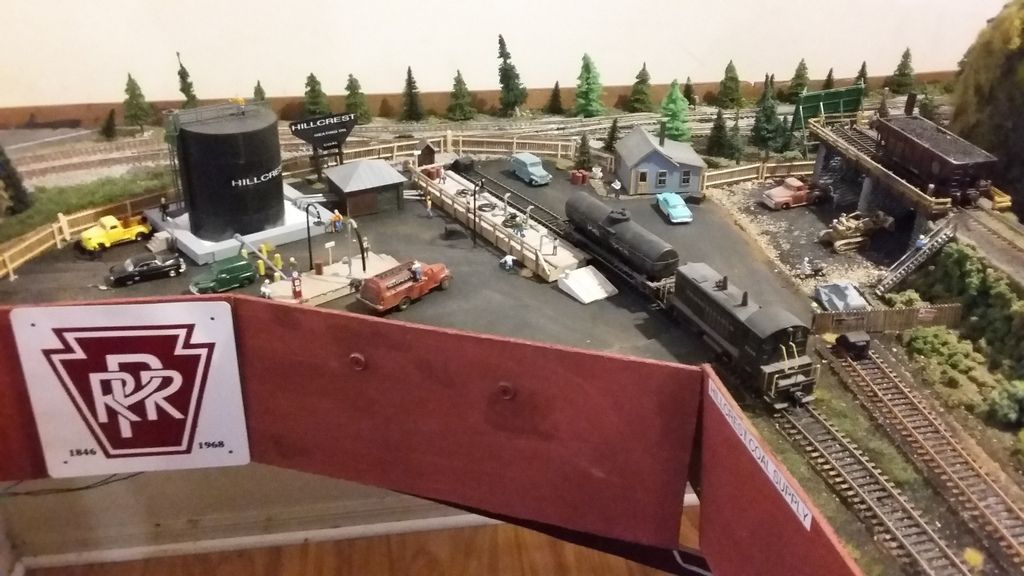

Here is a picture of the complete Hillcrest Coal and Heating Oil facility.

`

[PennsyJ1]

Thanks everyone. Today I had to go to plan B because of the rainy weather here. I had wanted to finish the framing but instead I installed the #5 PECO Insulfrog T/O (the size and type I use for everything). Before installation I solder jumpers and paint the rails (latex rust color). When I solder it in place, I only solder the far side of the joiner so I never solder the actual T/O.

After it was installed I checked it with a level and ran a loco back and forth without issue. This was also a test of my expansion of the electrical and DCC system.

Here is a picture of the complete Hillcrest Coal and Heating Oil facility.

`

Keep up the good work, and as they say a layout is never finished!! Keep the pictures coming.

Bill

[PRR Modeler]

Thanks Bill.

[S&S RR]

Curt


Looks good!

[PRR Modeler]

Thanks John.

I completed the framing today but need my son's help to mount it. Probably tomorrow. I will post a pic when it's mounted. Instead I a have a picture of a passenger station I put in last month (not normally a passenger guy).

[ACL1504]

Curt,

Neat layout. Thanks for sharing it with us though the forum.

Tom
