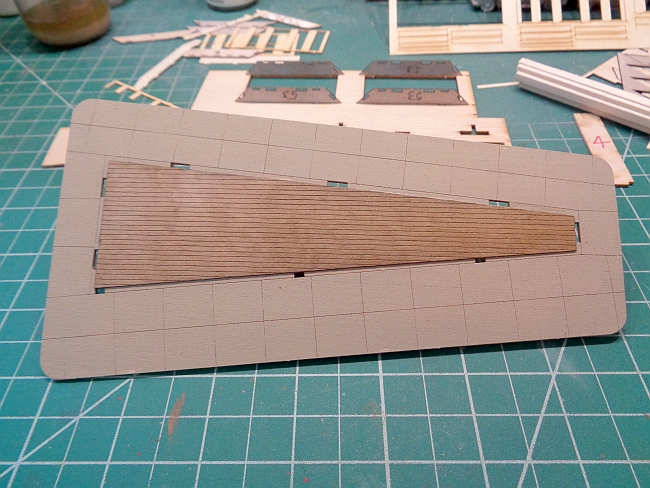

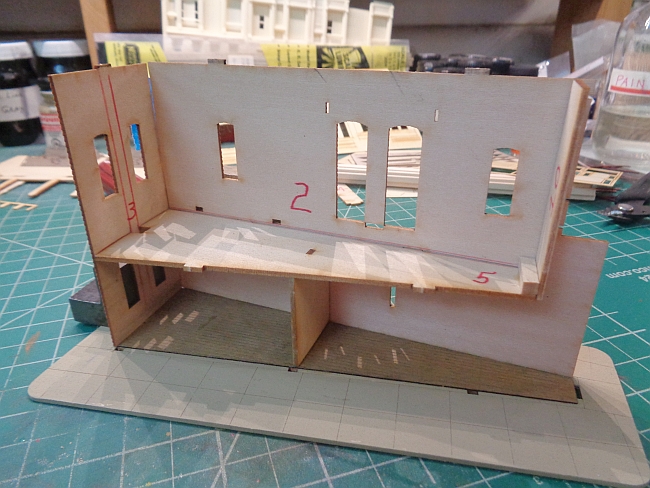

The floor was glued to the concrete base, weighted until the glue was thoroughly dry - over night.



The bracing was glued to the side wall, #3. If building this kit, be sure you leave space at the bottom for the brace to clear the thickness of floor. If you don't use the floor, then no worries.

[ACL1504]

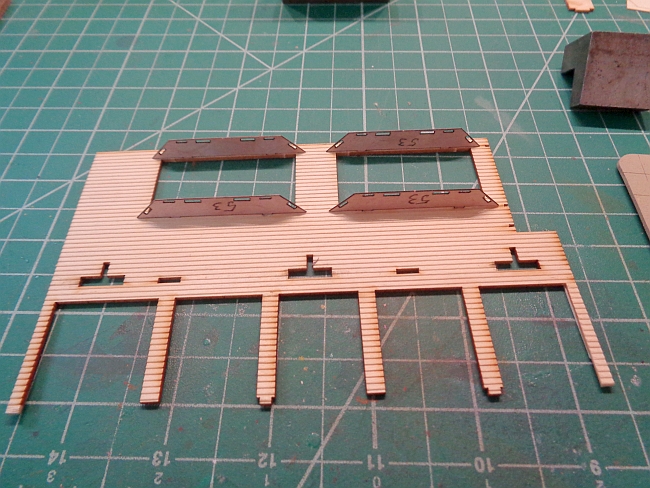

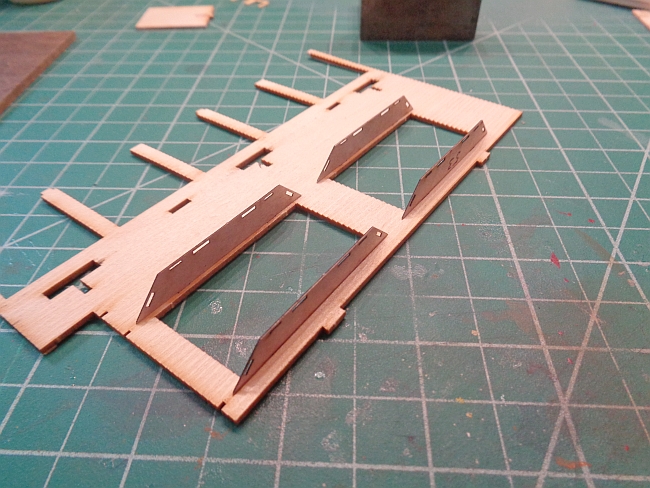

All four of the parts, #53, were also test fitted in the slots. These are the only parts of the two bay window that have tabs that fit into the front wall. These fit nicely with no adjustments necessary.

[ACL1504]

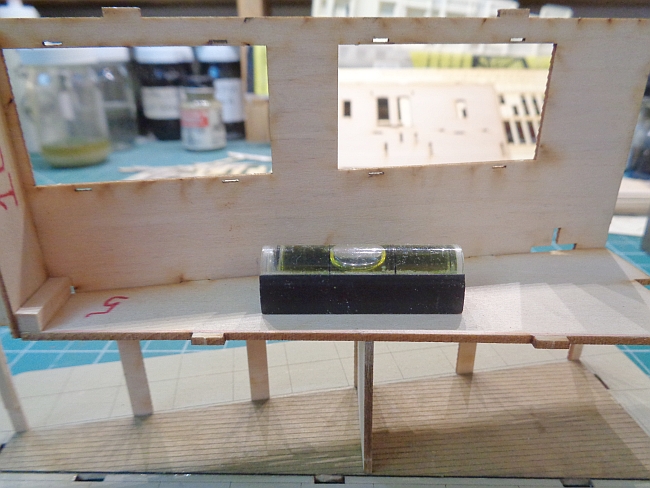

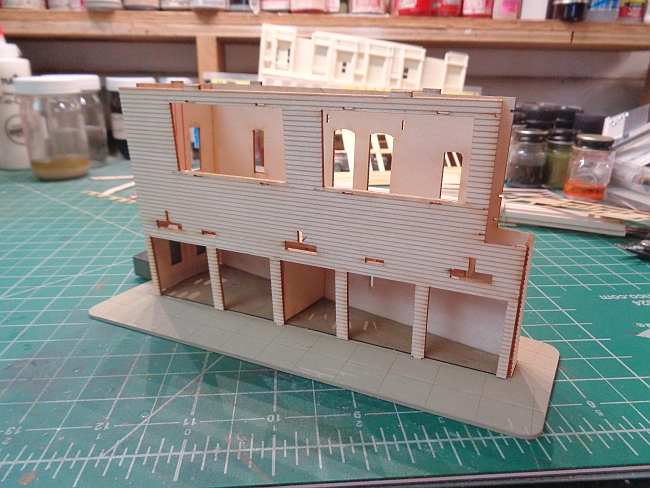

Here is how it looks at this time.  Nothing is glued other than the brace on wall #3.



Everything seems to be level.



Front wall test fit with no issues.

[ACL1504]

One day I may be able to paint this baby. But, for now, there is another major issue with the canopy on the front.

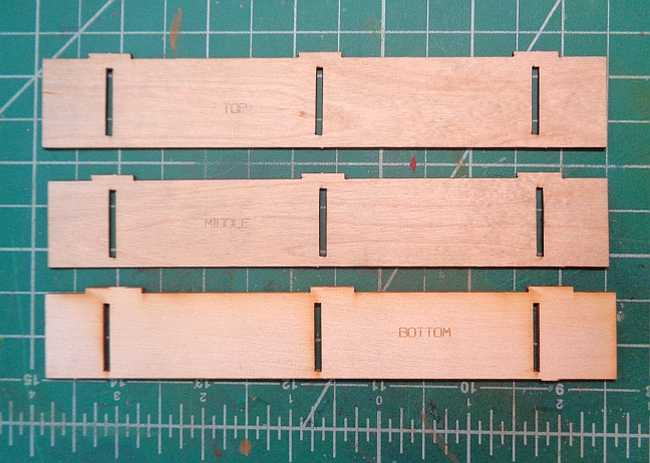

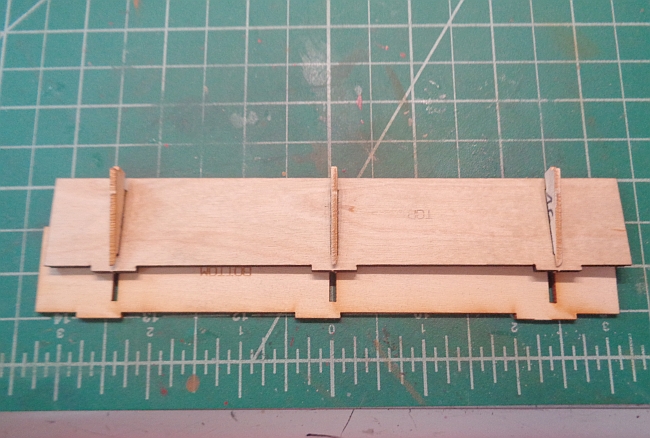

Here are the three pieces that make up the canopy/awning. There is a bottom, middle and top.

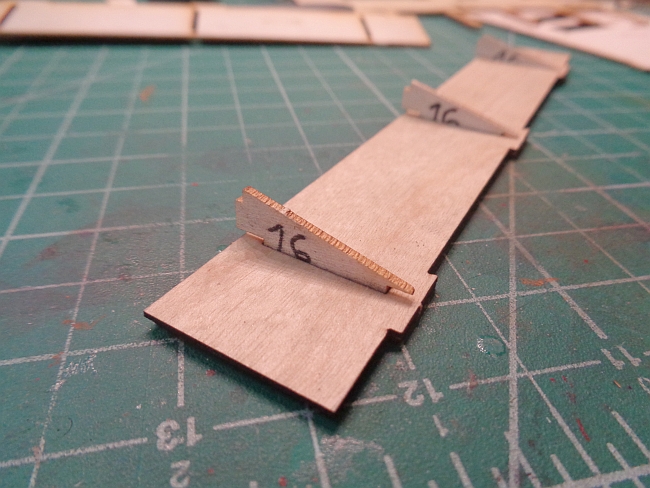

I identified the three parts, #16, and test fit them in the slots, no issues here.

[ACL1504]

The top and middle slots and tab align. However, the bottom is off.

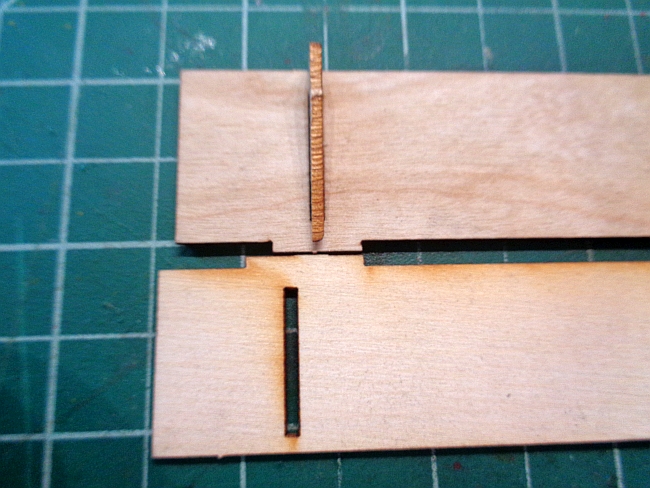

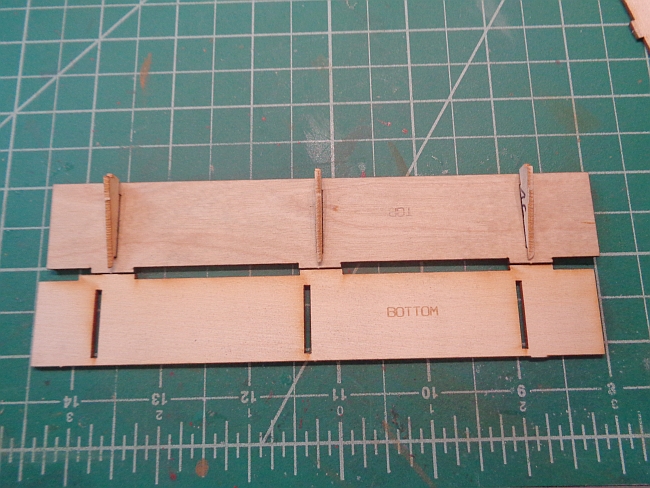

In the next photo you can see the problem. The tabs align except the tab on the left is too long.

Notice also the slots don't align and the bottom of the canopy is shorter on the right and longer on the left.





If you align the top and middle with the slots, the tabs are off.



Done for now. I'll show you my fix later this afternoon.
