Going to get into a little bit of wood working next.

I decided at this point that I needed to get some sort of idea on framing up the first wall. So, I started to think how I wanted to do this. I figure the main 12" X 12" posts that hold the whole building up should be glued together first. Next, I'll do some corner bracing and horizontal beams just above and below the windows and then add the horizontal Gerts on a 3' foot vertical spacing.

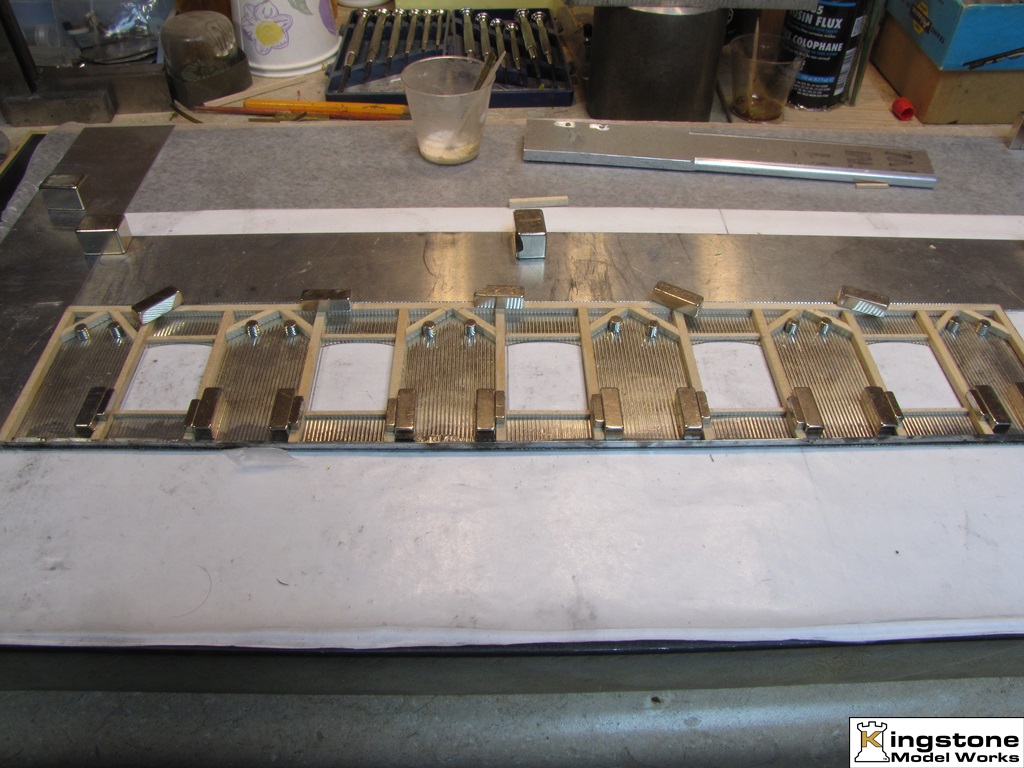

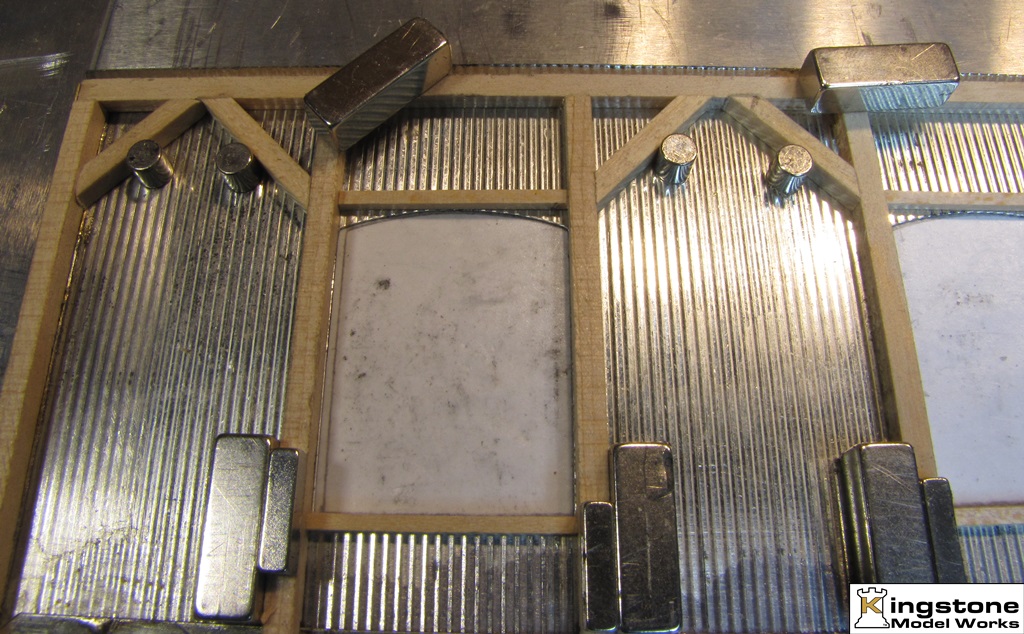

Here's a pic of the layout. Magnets are great for assembly. They hold the wood just where you need it as the glue dries. I think this works better than weights on top. The magnets would even help in keeping wood from warping.

I use a piece of 1/8" sheet metal overlaid with a piece of paper. Aluminum strips about 2" wide are used as an edge guide on the left and top and are at a perfect 90°. I use magnets to hold the aluminum strips down. Smaller magnets are use in positioning and holding the wood.



I started to add bracing on the larger beams. I'm not too happy with my chopper I built a while back. It doesn't chop the wood square. So I made myself a crosscut saw using the lathe. Besides turning material round, you can use it as a saw.

I had made a mandrel a while back for cutting off pieces of PC board for making pc ties. I can lengthen it also for longer pieces just by loosening the chuck and sliding the arbor out to a length I need. Also what's nice about the lathe is how slow it can be run. Makes cutting styrene or any kind of plastic a breeze without melting it.

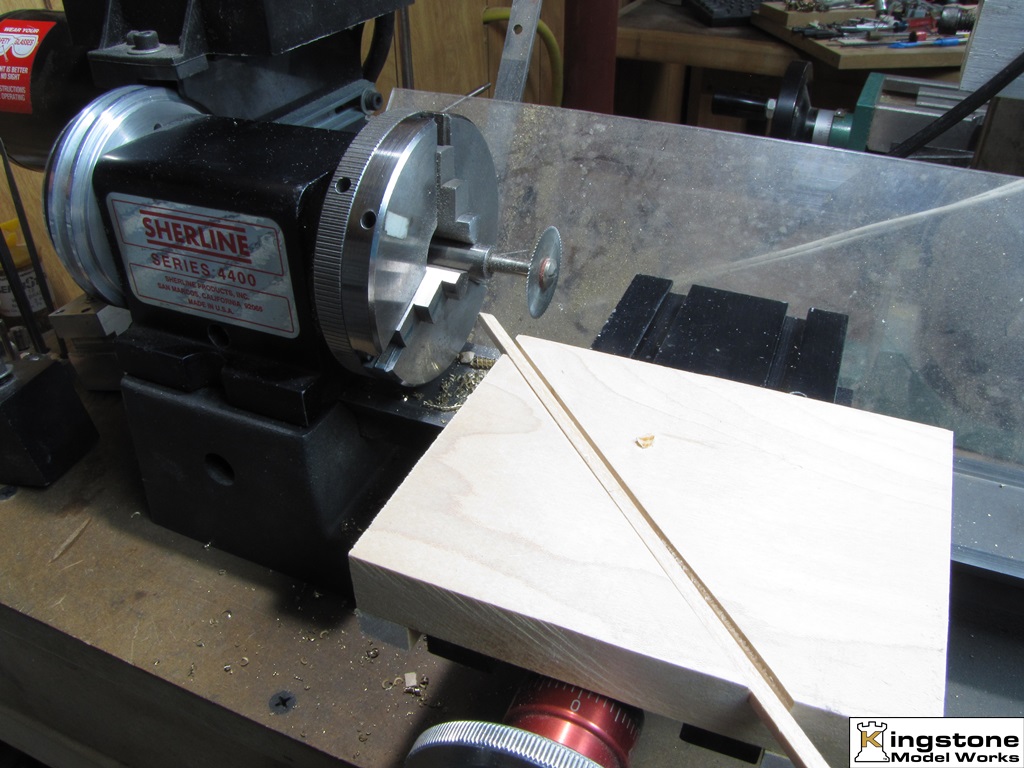

So I'm going to need a number of corner braces and two 45º angles on them. Here's the lathe saw set up to do that.

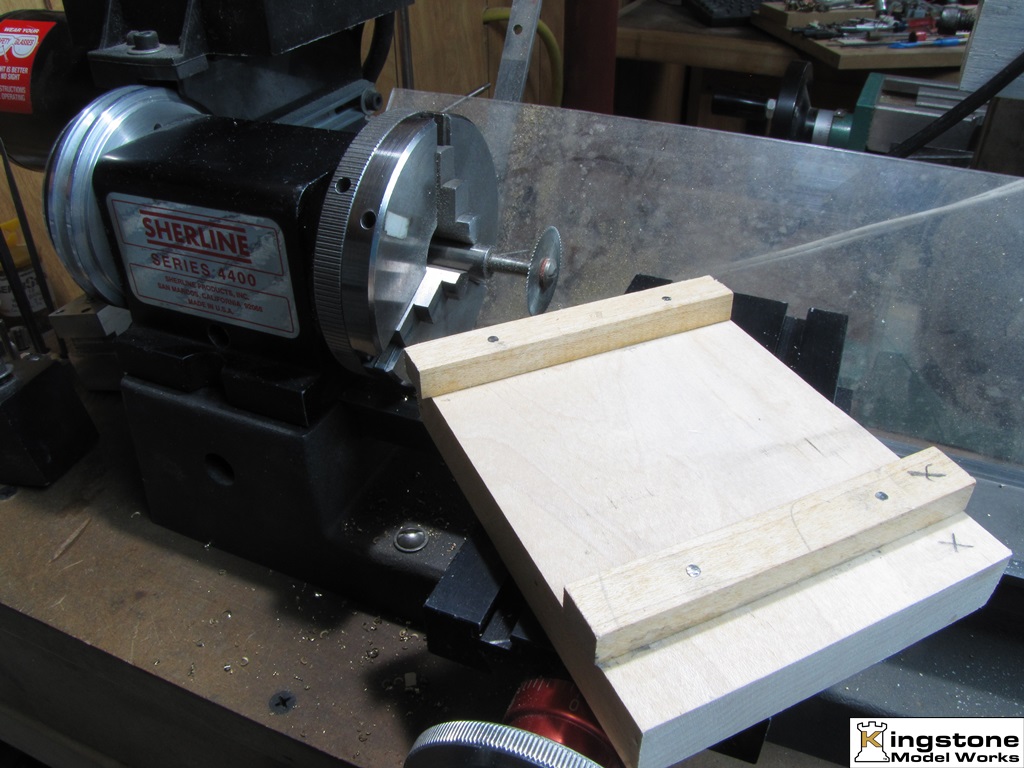

Two pieces of wood glued and nailed to the bottom guides the sliding table.



And the end result.

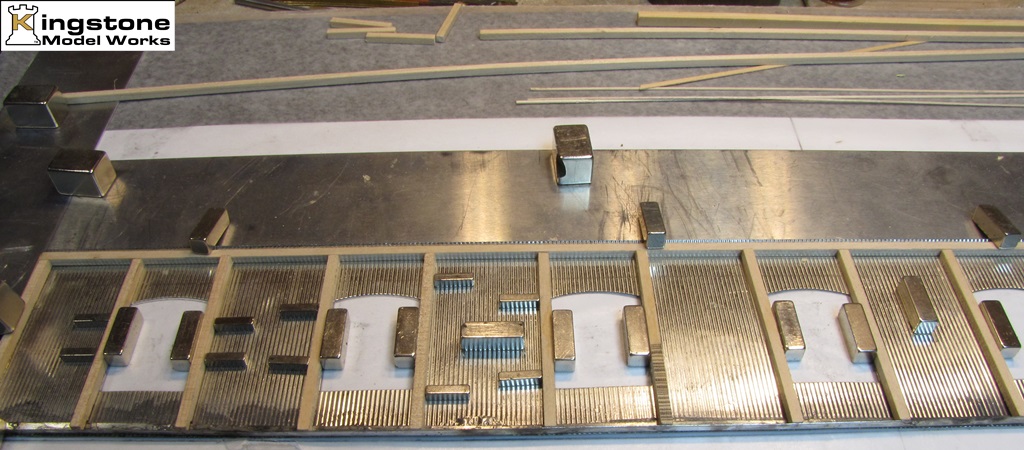

Couple more pics. All glued up and cooking. I'll see if I can get the frame off the wall without breaking a glue joint. I'm sure one or two are stuck to the metal.

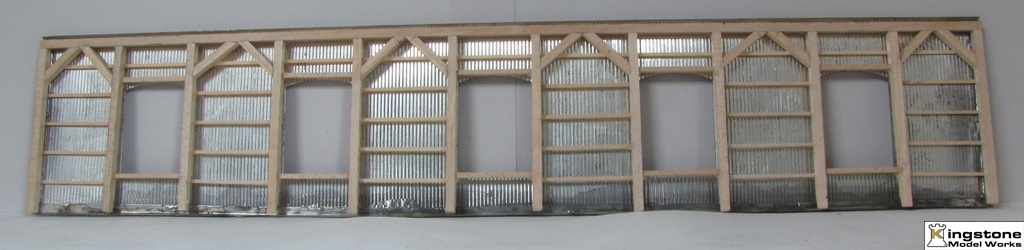

I finished the second frame. Here are some pictures of it and the frame mounted against the corrugated wall.





After I finished the second frame I did a little photo shot at the stone crusher.

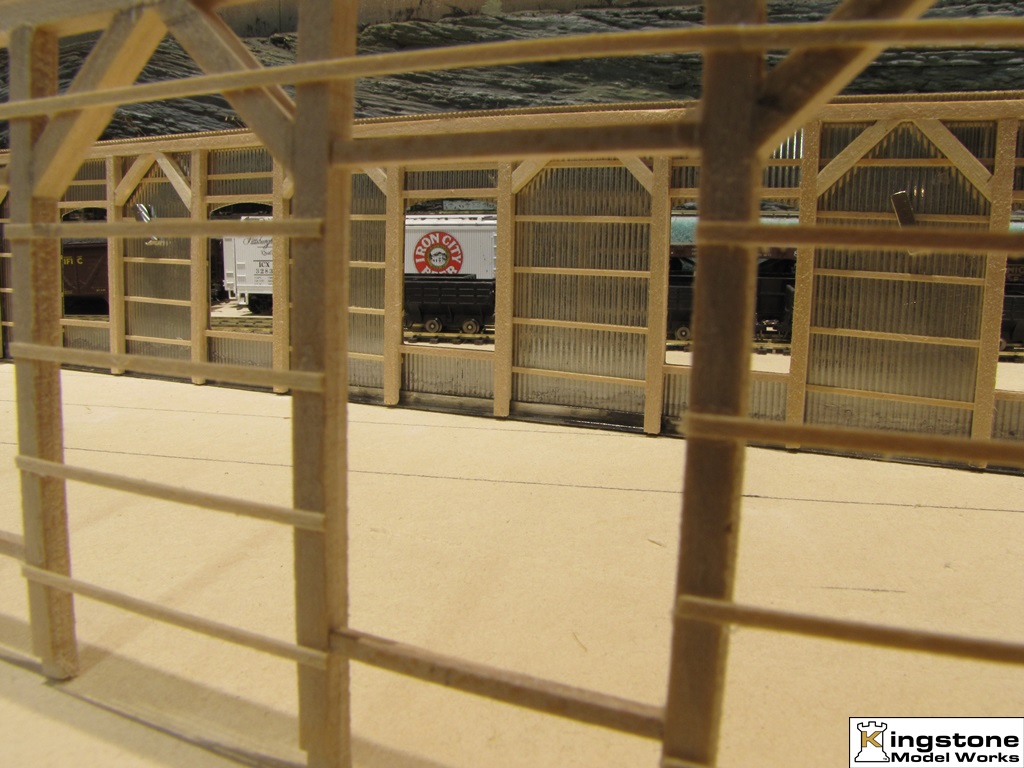

This is an al-la Bob Boudreau photo through the yet to be installed window and metal corrugated side.



Next will be working on the windows.

Until next time.

Bernd
