The next project on Frank's loco is the installation of firebox/ballast lights. I use 12 volt ballast lights from PBL. PBL are the folks that sold the PBL Foreground Sound units. They were developed by Bob Longnecker for PBL. Bob Longnecker is the gentleman that invented the first PFM Sound System I for Don Drew of PFM (Pacific Fast Mail).

Anyway, the picture follows as we all love photos. Please note, the $4.00 price is a 15 year old price.



I use the orange and red lights together as it gives a more realistic fire look.

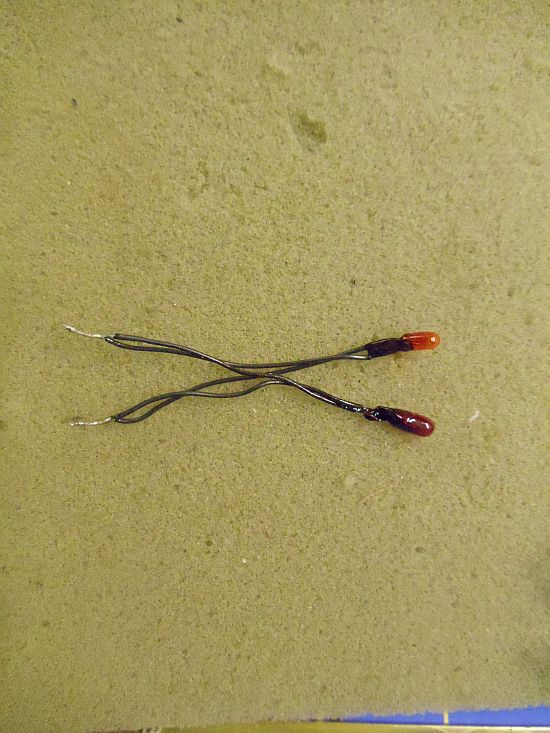

I wire the bulbs in parallel as shown below.



Continued in a few.

[ACL1504]

I install the lights on the front end of the motor depending on the depth of the loco firebox.



When lit, the bulbs give a nice orange/red glow.

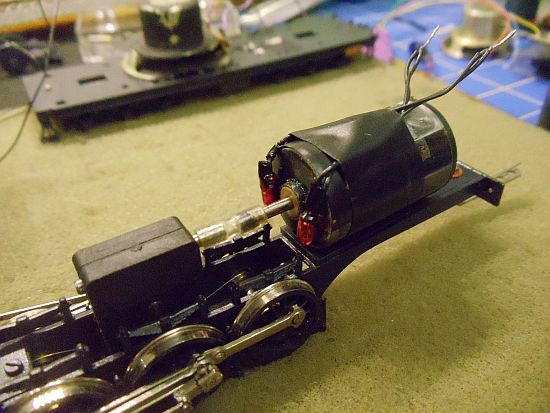

After test fitting these on the front of the motor, I found they wouldn't fit as the loco boiler wouldn't fit over the motor and the lights. No problem! I moved the lights to the bottom side of the motor. One on one side and the other on the other. Hey, that sounded like a little double speak.



Since I won't be able to use the bulbs side by side, I'll go with either two red or two orange. I'll test the lights and go with what is more natural.

A little information here on the lights being used with DCC. The bulbs are 12 volts and can be soldered directly to the + & - motor poles. This way the bulbs will burn all the time the loco is running.

However, I prefer to wire the bulbs to one of the DCC decoder functions. This way the user, in this case Frank, has the choice to turn them on and off while the loco is running. And, because they are 12 volts a 330 Ohm resister isn't necessary to be wired to one side of the bulb lead.

Continued in a few.

[ACL1504]

Time for the coal load so I got my jar of fake coal. I use the fake coal as a bottom layer only. Once the bottom layer is in place and the DCC is installed I'll add the official looking coal to the tender bunker.

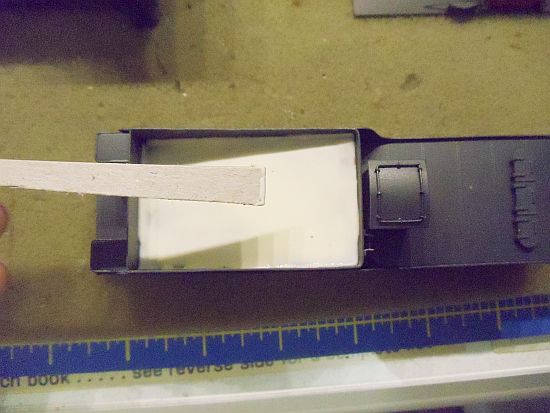

I spread some yellow glue on top of the cardboard I previously glued in the coal bunker.

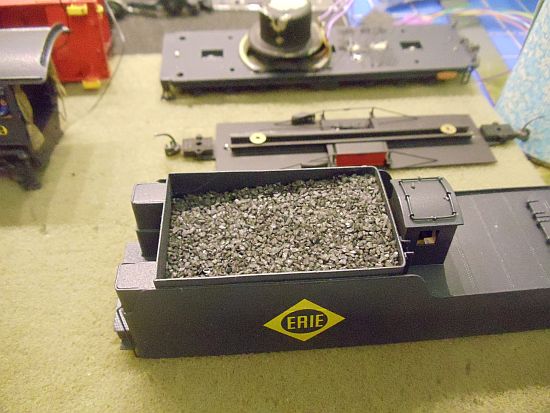

I then added the fake coal and set it aside to dry.



Continued in a few.

[ACL1504]

Okay, all is well at this point so it's now time to install the DCC decoder.

I glued the speaker in place and then began the DCC wirding.

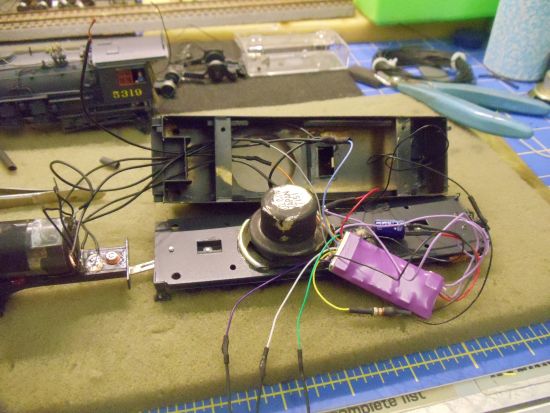

Looks like a bowl of spaghetti wiring.



More in a few.

[ACL1504]

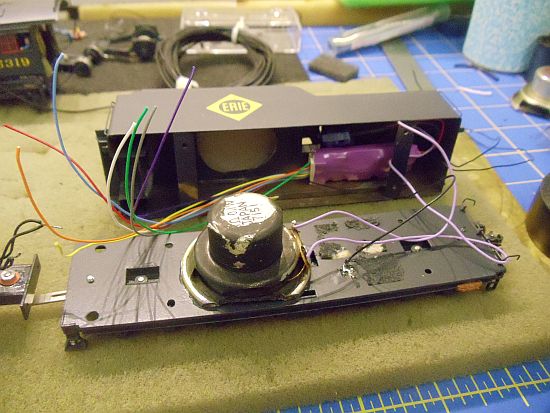

The sound was installed and I programmed the decoder. It sounded great, nice sharp and clear. All functions worked. However, when placed on the track for a test run, it ran like crap. So I was thinking CRAP, what now! Actually I didn't say or think crap but I can't say it here.

The loco kept stopping and starting and ran in a jerking move. I traced the problem to a brake shoe shorting on the rear driver tire. I spoke to Frank and a decision was made to shave a little brass off the shoe to see if this didn't either solve the problem or at least help. Shaving the brake shoe did help but it didn't solve the jerking movement.

I removed the boiler, motor and gear box. The loco and the side rods then rolled very smooth. It appears the problem is the old gear box. It isn't the original gear box and appears to be an after market one.

I discussed this with Frank and the decision was made to send the loco to North West Shore Line for repairs. I can replace the motor but I won't replace the gear box which includes replacing the gear on the driver axle. Just to many bad things can go wrong. Darryl at NWSL is a professional and does this type of repair for a living.

No need to have a $400.00+ paint job on a loco and not have it run like a swiss watch.

I'll call Darryl tomorrow and this thread will be on hold for at least the next five week.
