Bar Mills Mooney's Plumbing Emporium in N and H0 scale.

[postalkarl]

Hi Jan:

Great job sofar. I'm not sure I could do this. I'd probably have all the parts mixed up. I'm lucky I can build one at a time. Keep up the great work.

Karl

[ReadingBob]

Wow.  You're really making a lot of progress and doing a wonderful job on both builds.  These are going to look super!  Thanks for taking the time to share so many photo's!

[jrmueller]

Jan - Here is my take on Mooney's. Entered it in the Lancaster EXPO but didn't get any action.  Jim

[jrmueller]

Whoops missed the front.

[Janbouli]

Thank you all for the compliments , means a lot to me, and Jim thank you for the photo's , you set a high bar for me.

Karl ,did you find the photo's of your scratchbuilt Mooneys? I'm sure everyone would like to see them.

[postalkarl]

Hi Jan:

The diorama looks just great. Here's my Mooney's Plumbing. I used a structure off of the Franklin and South Manchester RR. It is scratch built.

Karl

[Janbouli]

Thanks Karl, lots of ideas for weathering and details there. The rock foundation is great as are the shingles, oh , and everything in between

[EricQuebec]

Nicely build, Janbouli

Eric Québec city

[Janbouli]

Merci beaucoup Eric.

[postalkarl]

Hi Jan:

Thanks glad you enjoyed it.

Karl

[Janbouli]

To weather the roofs I used a product I have only just acquired, they are textured paints from Citadel from their Technical series. These are mainly used by Wargamers.

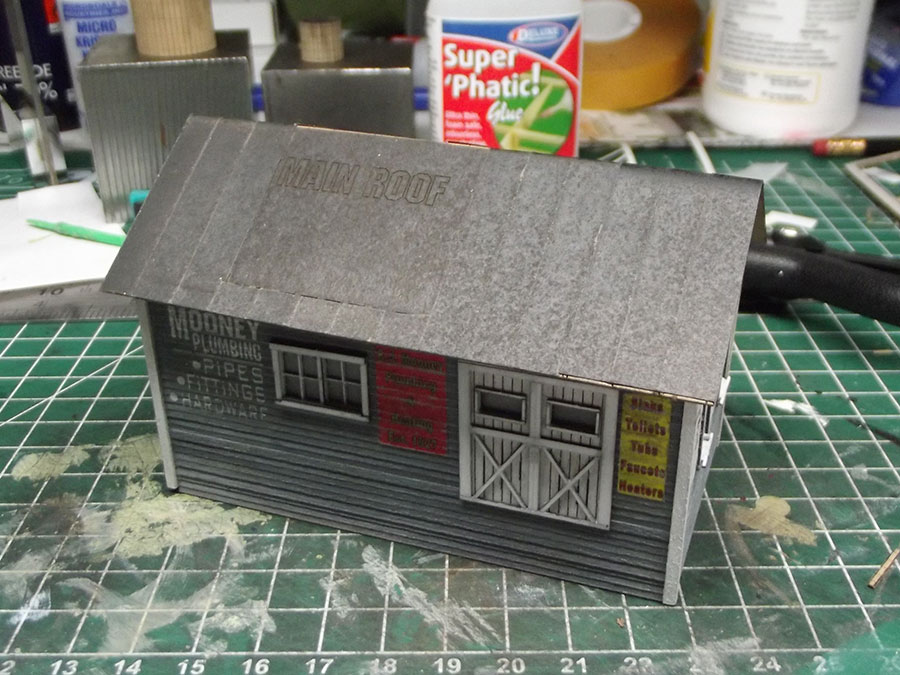

Main roof before weathering.

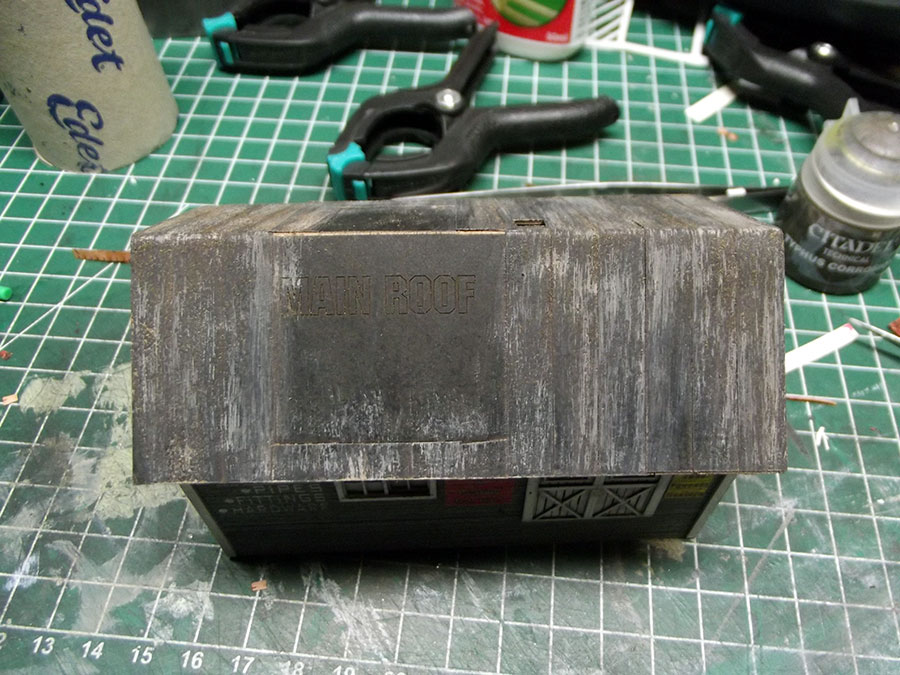

First a brush of Typhus Corrosion , I know , I don't really like the names of some of their paints , but that's what they are.

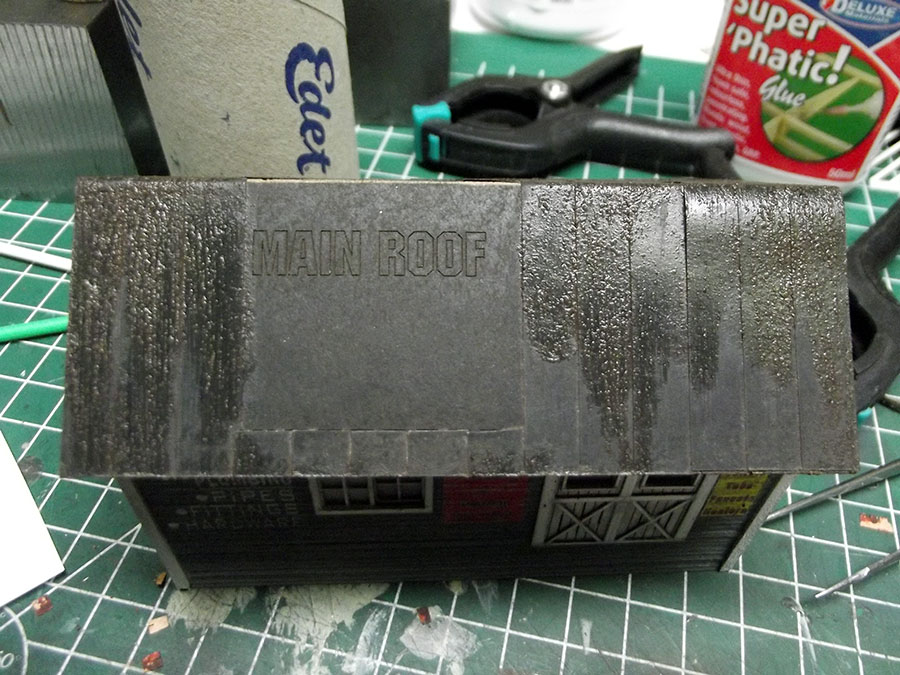

Then a dry brush of Agrellan Earth , I think the texture of the paints makes them look just a little different to what we are used to.

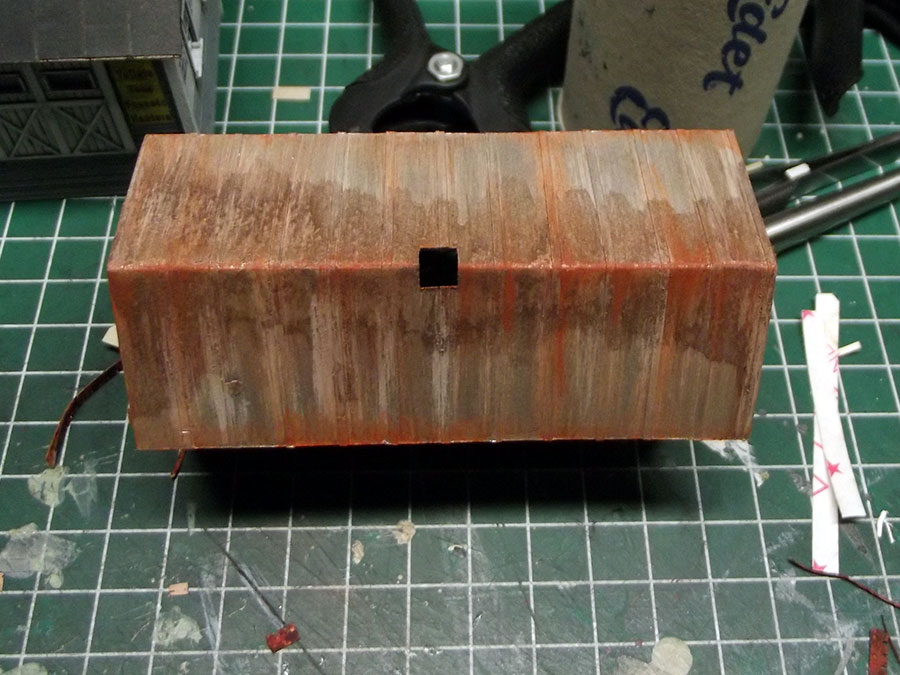

Same sequence for the H0 metal roof

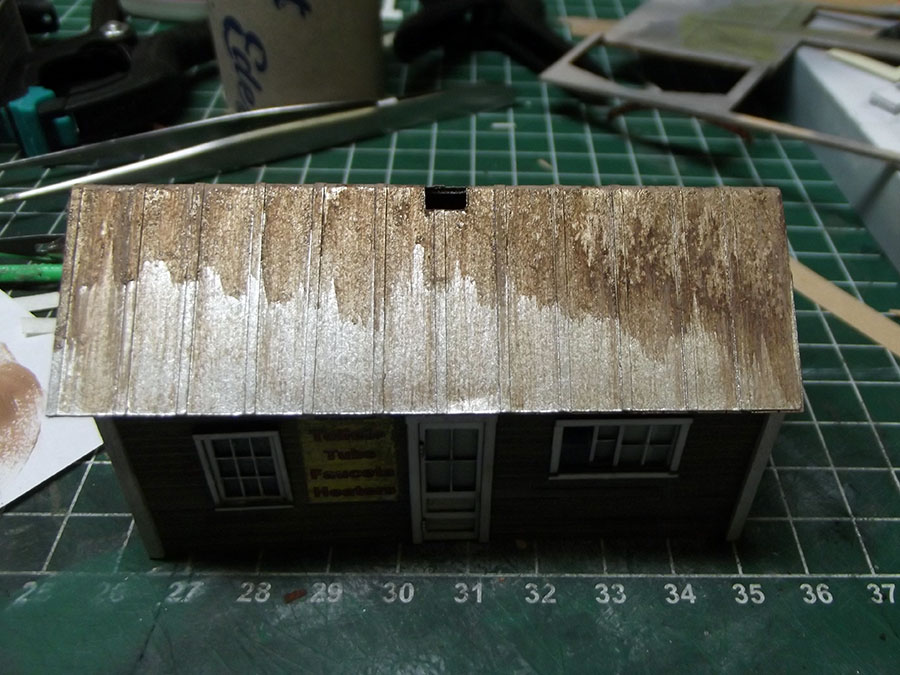

And the N-scale roof. It's a lot smaller , and from close up shows less texture because I brushed off some of the texture that was to thick for scale.


Followed by Blackfire Earth

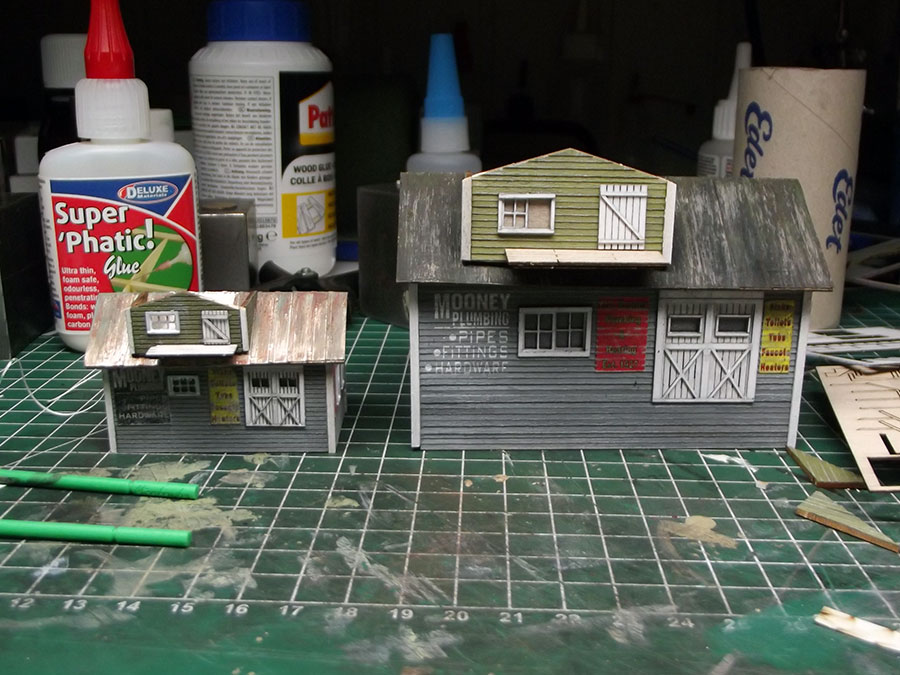

Then a sort of wash with the Nihilahk Oxide, I forgot to take a good photo , but if you look close you can see it on the left N-scale structure, the tarpaper roof I finished with a dry brush of Nurgles Rot. I then glued on the dormers.

[Janbouli]

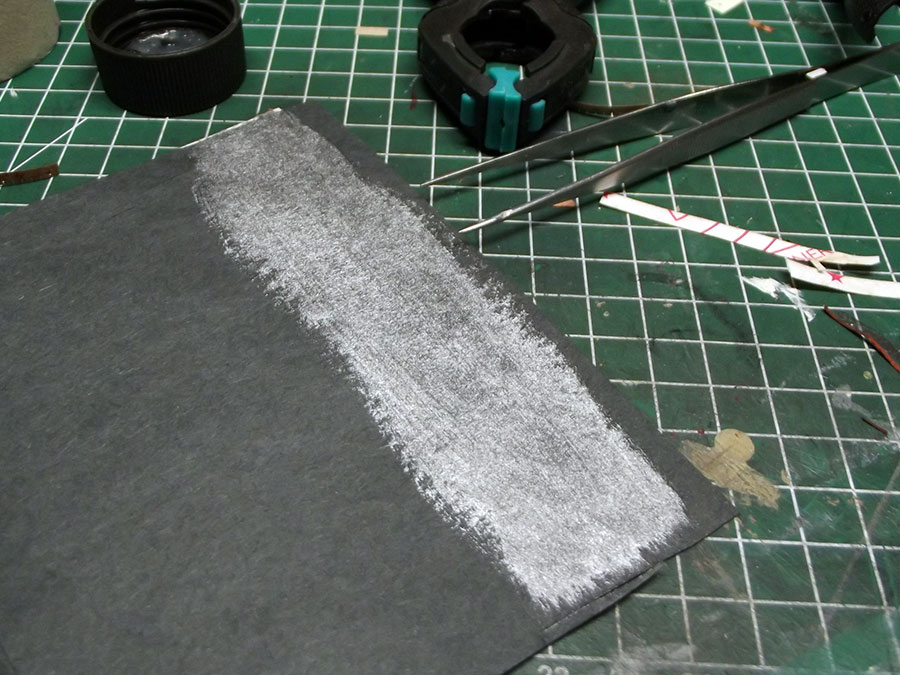

While I waited for the dormers to set I went on with the water tanks. Painted a piece of black paper backed with transfer tape Tamiya Gun Metal

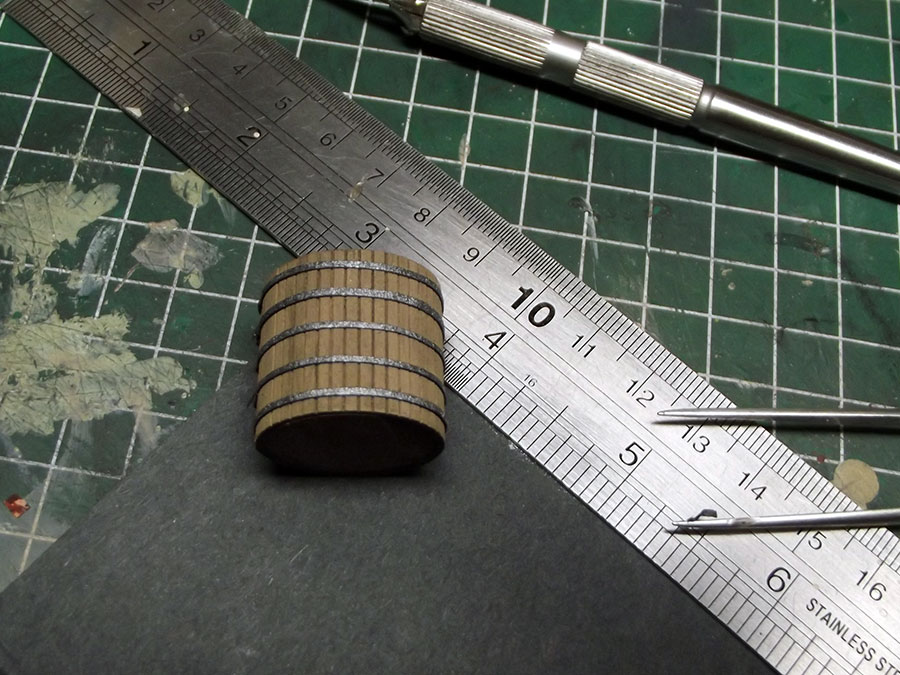

Cut 1mm strips from that.


And installed them to the H0 water tank. This didn't work out for the N-scale tank, more on that later.

[madharry]

A nice job Jan. I built this kit a few years ago. It is a nice little structure and I think it is one of BM's best.
Keep up the good work.

Mike

[Janbouli]

Thanks Mike, good to see you here again, it's been a while hasn't it. Looking forward to March , I will be at Ontraxs on Friday.

[jankirkwood]

Wow Janbouli what a great build.
