My wiring now needs to be connected to each other. I have the lights on the main floor and shadow boxes on the upper two floors. These  two circuits are wired in series. I want to wire them parallel. meaning one circuit instead of two.

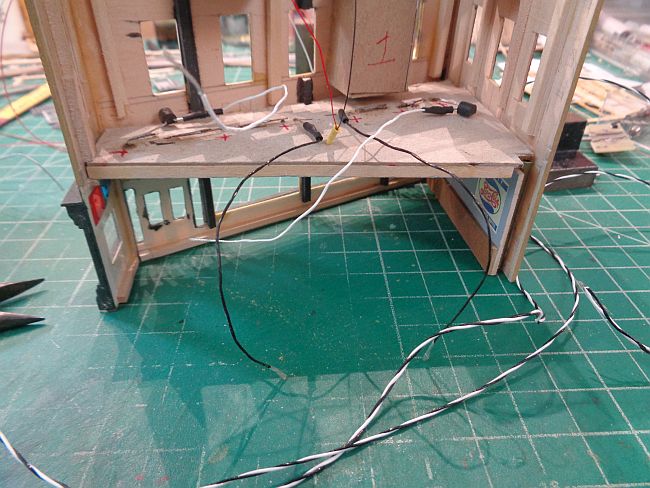

In the next photo the cafe lights are wired with the black and white wires. The window boxes are wired with the LEDs red and black wires.

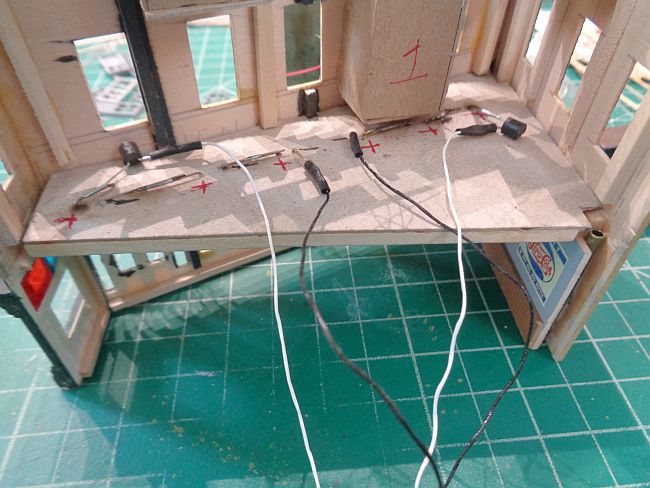

The white wires in the photo below are the + positive and the black are the - negative.

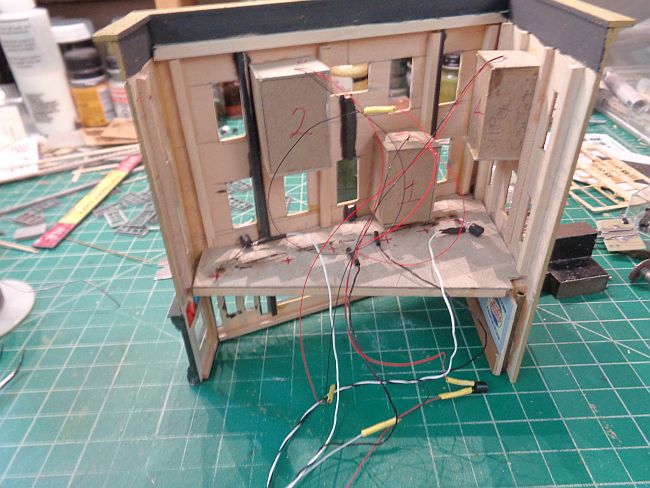

You can also see I  unraveled the black and white wires to make it easier to follow.

[ACL1504]

Uncle Tommie,
The build is looking great!  The lights in the upper floors are a nice touch.  So which guy is the one drinking the Diet Pepsi at the table?

Cousin Brucie.

Good to see you my friend. The men are all drinking Diet Pepsi while the women are drinking coffee.

Thank you also for the kind compliment.

Tom

[ACL1504]

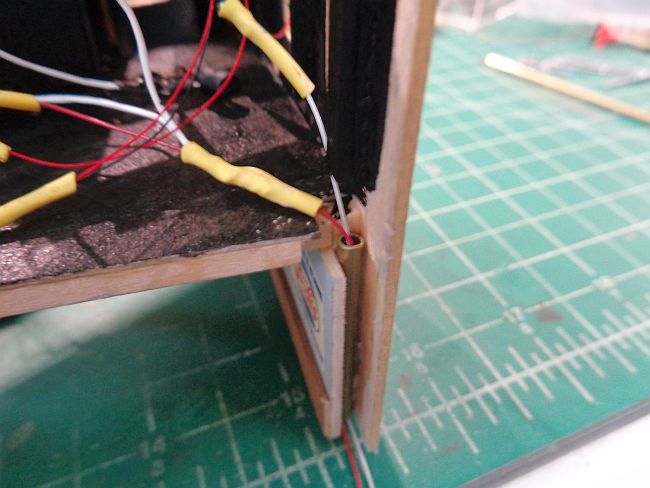

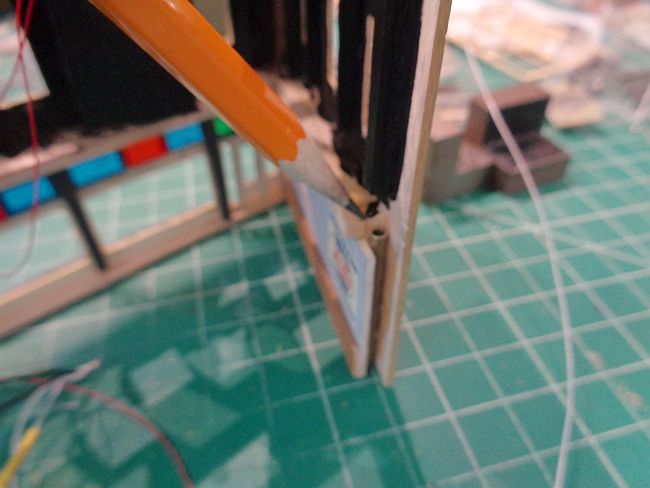

To make it easier for me to feed the wiring below the layout, I added a short piece of 3/32 ID (inside diameter) brass tube. I glued this tube behind the wall.

[ACL1504]

I wired the two white wires to a red wire lead (positive) and the two black wires to the black window wires (negative).

The wires was then soldered to the red main wire and the black to a main white wire - I didn't have the same black size wire as the red so I used white as the negative.

The wires were then fed down through the brass tube.



Back in a few, Diet Pepsi time.

[ACL1504]

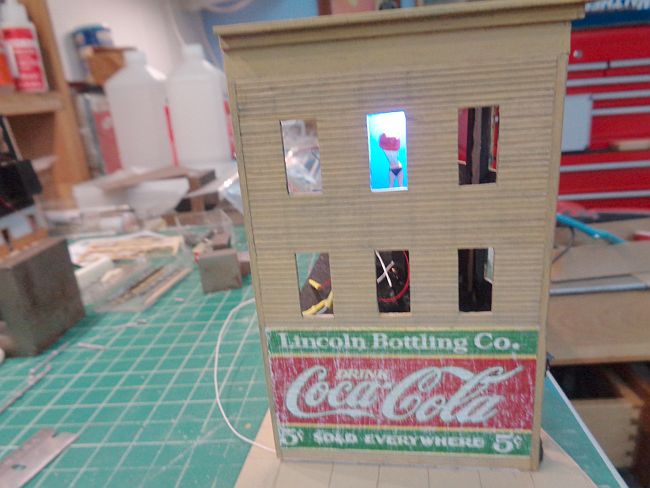

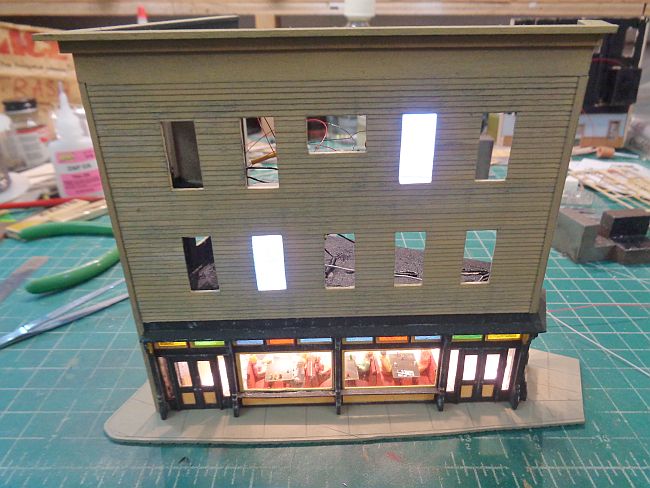

I tested all the lights with an 18v power supply.

It all worked, YEA!

The lights will look much dimmer after the windows with shades and curtains are added.

[ACL1504]

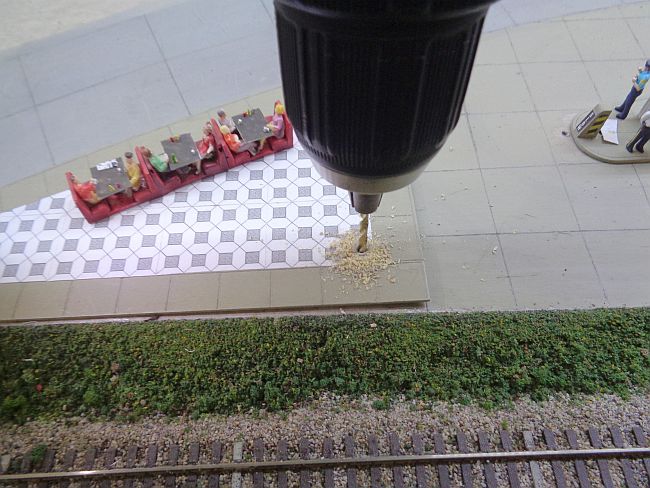

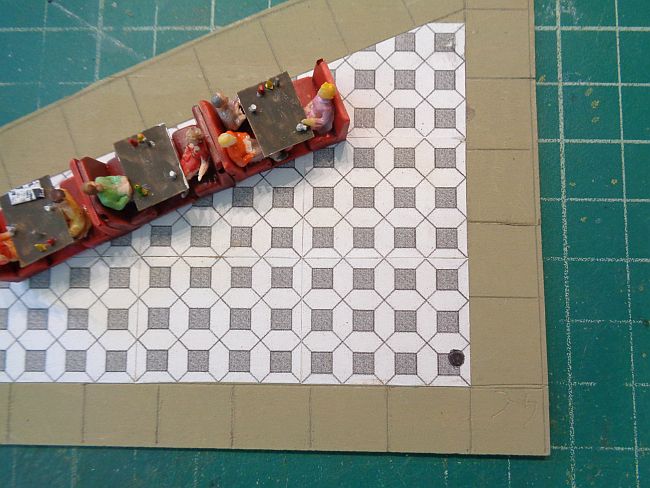

I marked on the base where the wires will feed through the layout.



I drilled a hole in the base and through the layout.
