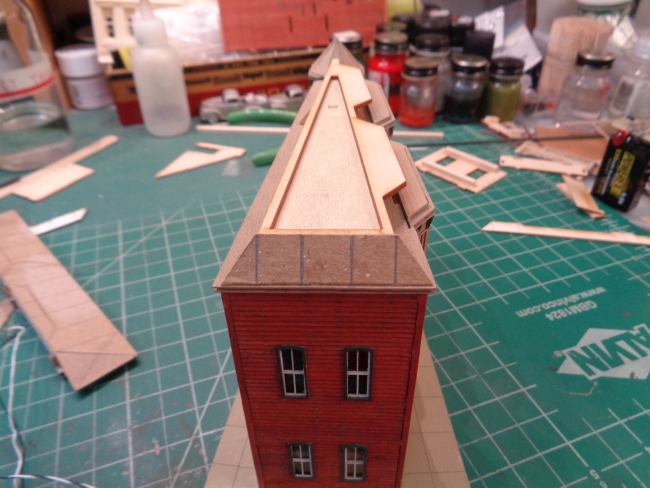

I decided to start on the wide end of the building as a starting point.

I used the original pieces as a template and recut that piece in thin cardboard. The cardboard came from the back of a legal pad. When I left the State's Attorney Office. I had all the secretaries save a bunch for me. I think I had over 75  sheets of cardboard when I walked out the door.

Anyway, I cut the new piece larger so I could cut and fit as I added it to the roof.



This looked good so I glued it in place.

[ACL1504]

Looking forward to seeing the result (and description of the process.)  Glad this was relatively painless!!  These days on most structures I do a roof mockup in paper.

dave

Dave,

I was very happy to have it less painful than I thought.

Tom

[ACL1504]

I then did the rear section.

[ACL1504]

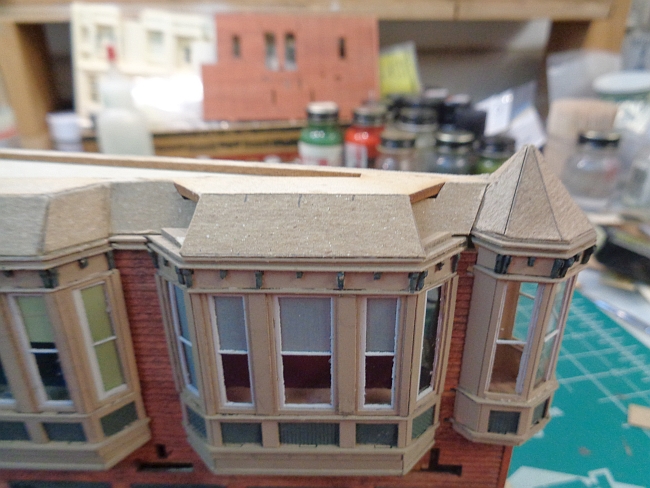

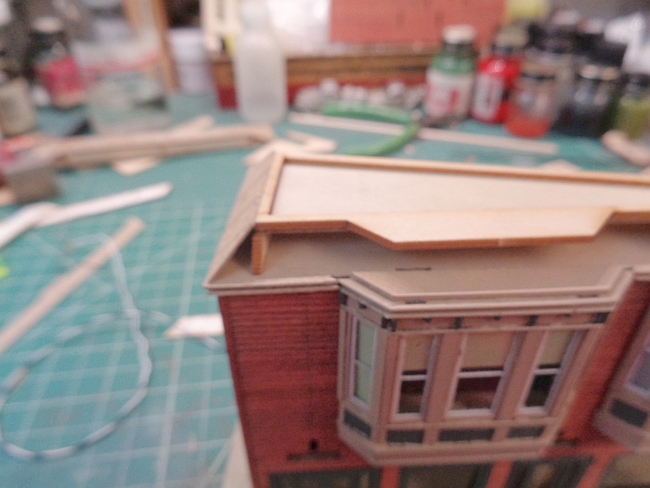

The area above the bay windows was tricky but, not as difficult as I imagined.

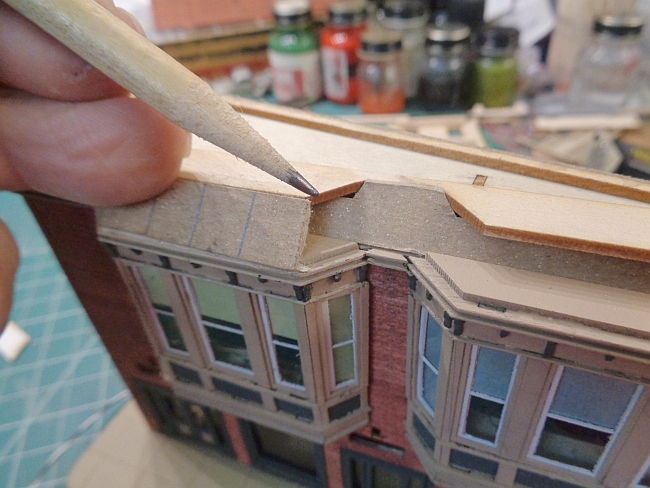

The front part fits between the top of the bay windows and the upper roof portion. I needed to make a slight adjustment on the end that butts up against the tower sides. In the photo below, this piece is not glued in place.



I made a few cut adjustments on both ends and cut it to short to my satisfaction. I recut a new piece and paid more attention to the end cuts. On the second time around, I got it to fit nicely and glued it in place.

I let the glue set and dry for an hour and then moved on to the next piece.

[ACL1504]

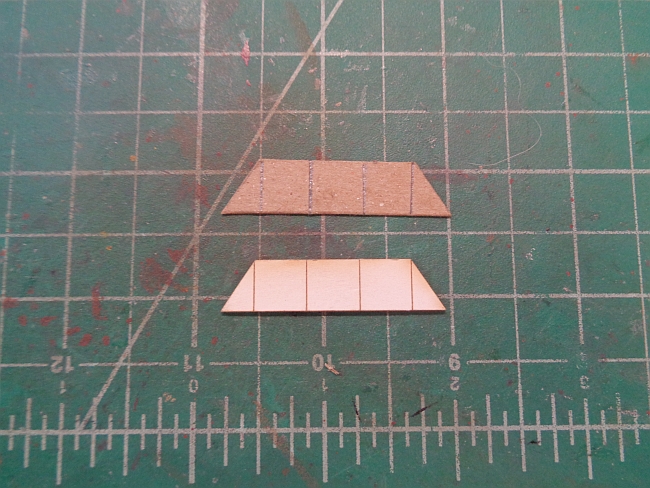

Again, I used the original piece as a template and traced the edges in pencil. I then cut the piece a little larger than the original.

I cut, test fit, cut and test fit a few times until I was satisfied with the piece. My debris pile says it all.



I didn't like how the right wing fit even after test fitting it a few times. So, I just cut it off and decided to make the right wing separately.

[ACL1504]

A new right wing was cut and glued in place as seen in the photo.

[ACL1504]

I liked how easy it was to make the right wing. I decided to make the second angled roof piece in three separate pieces.

I started in the middle and cut it to fit. This was the same way I cut the larger end, only this piece was longer.



I cut the left and right wings to fit and glued them in place.

[ACL1504]

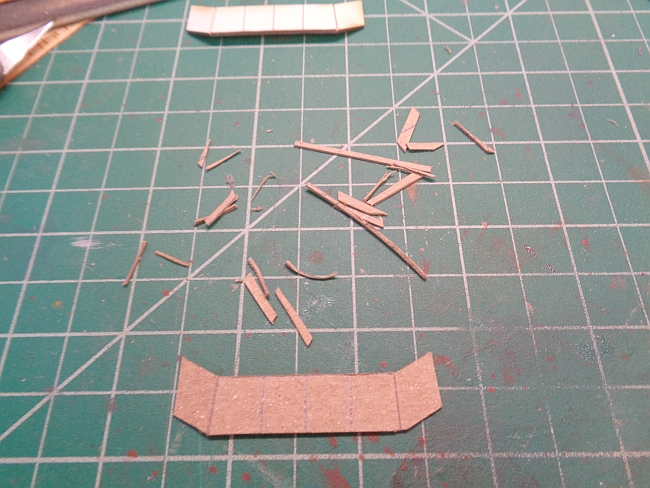

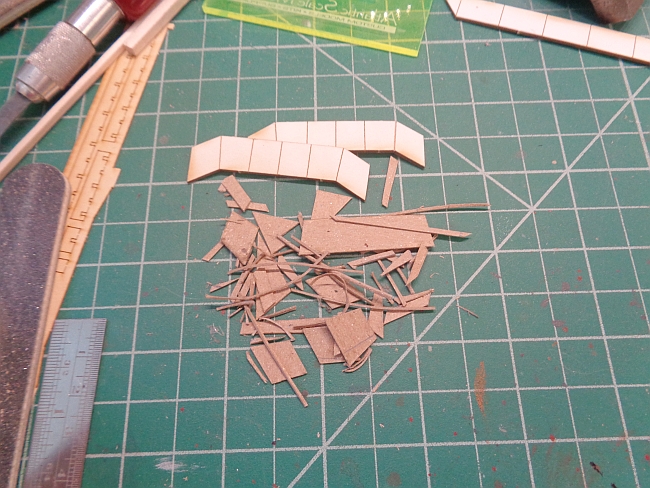

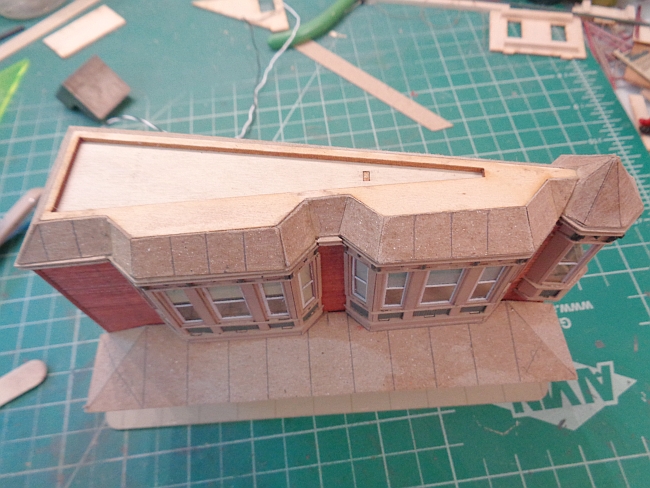

When finished, this was my cut and miscut pile of the pieces of cardboard.

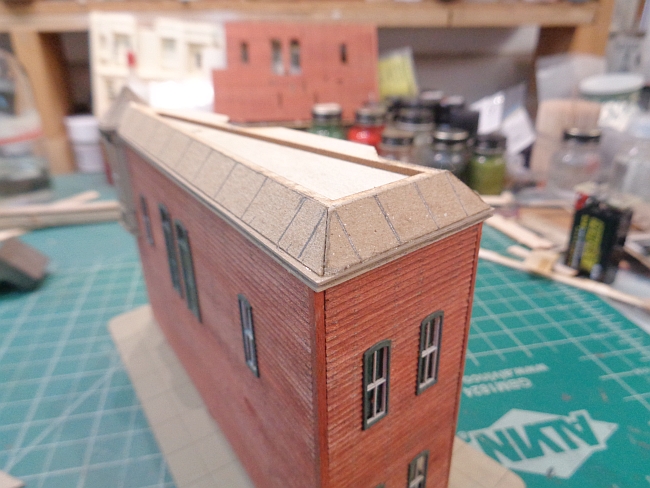

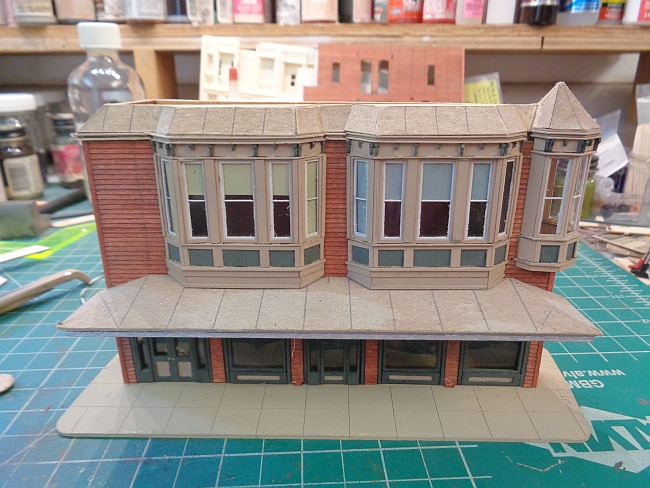

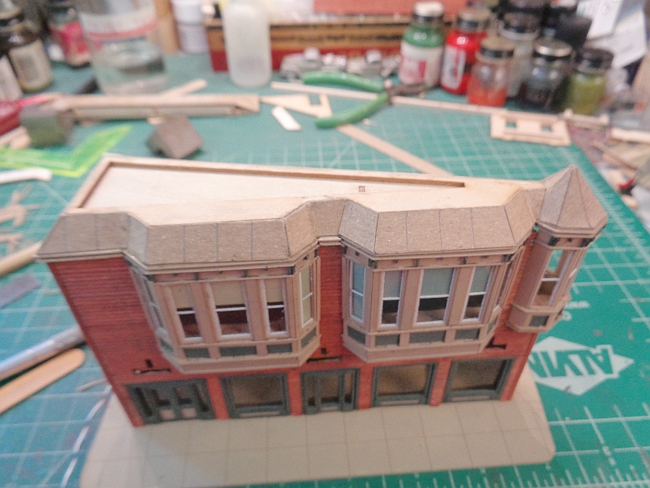

Here is how it looks after cutting the angled roof pieces.






I'm done for today and will take a few days break from the build. I want to get back to the scenery area around the barn.
