My plans for today included making the long fence. Mr. Murphy had other plans and due to Murph and 1:1 life stuff, the fence didn't get started.

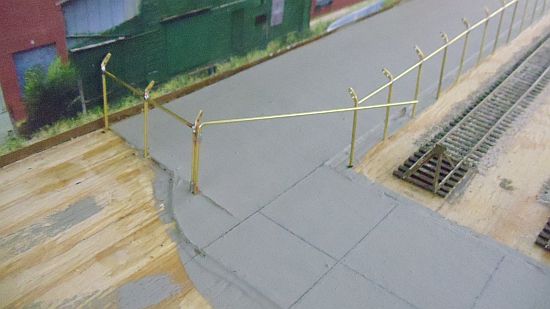

I didn't get in the train room until well after 1 PM so I decided to make the gates for the main entrance to the fuel facility.

During the process mistakes were made. Note the plural on the mistake issue. I'll share them with you all the same as I usually do.

I used a simple but effective way to make the gate hinges.

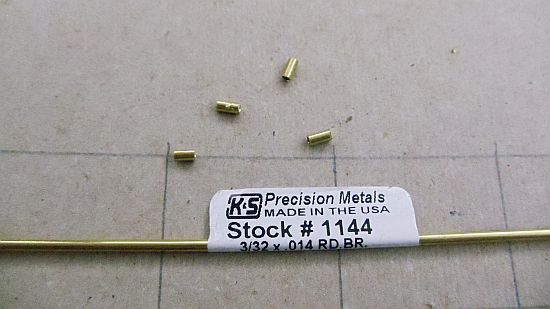

I started by cutting four short, I didn't measure just eyeballed, pieces of brass tubing. I used 3/32 X .014 tubing.



I then slid the 1/16 brass rods into the tubing. as shown below.



More in a few.

[ACL1504]

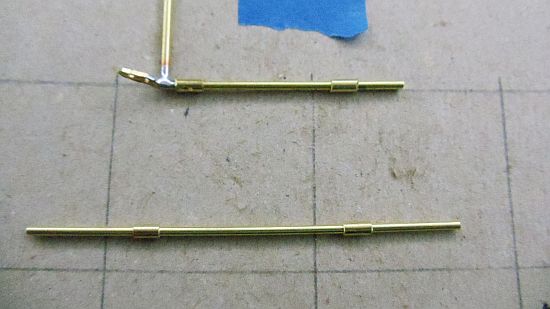

I aligned the four pieces as shown in the next photo.

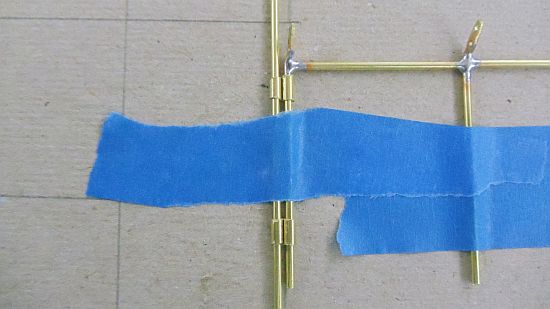

I taped the rods so there would be no movement when soldering.



I then soldered the tubing to make the hinge. I made sure not to get any solder on the inside rod. This is the rod that will swing the gate.



More in a few.

[ACL1504]

Next I made a 90 degree bend in the brass rod and checked it twice for squareness.





At this point in the build I took a Diet Pepsi break so now is a good time for another DP break.

[ACL1504]

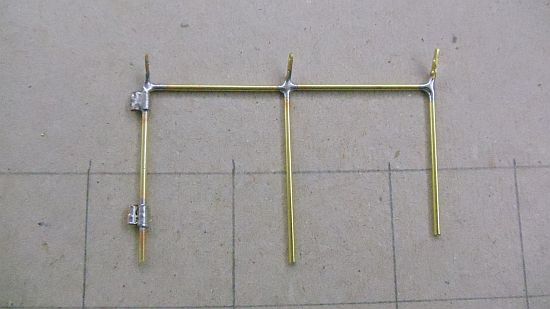

Here is a look at the beginning of the gate build.



I then started making the left half of the gate. When I got to the bottom section I realized I made a mistake in the gate height in relation to the hinge.

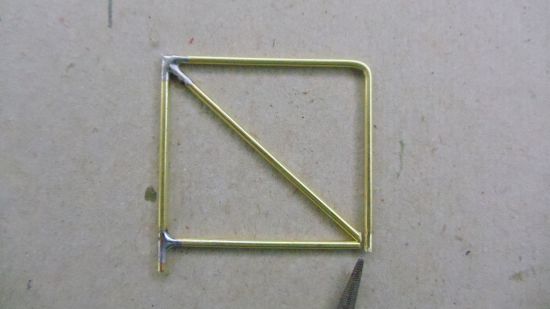

In this next photo you can see the point of my file pointing to the mistake.



If these three pieces are soldered together, the swing bar (on the right) won't fit into the hinge.

I decided to solder only the bottom and angle rods. I then used the Dremel cut off disc and carefully removed some of the brass rod from the two inside pieces.

Continued in a few.

[ACL1504]

Not taking a chance in solder getting on the swing rod, I used tape to cover the rod as I soldered the other two pieces.

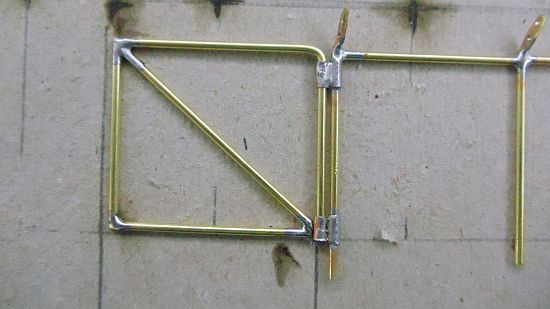

You can see in the next photo where I dodged a bullet.

You can barely see the gap between the bottom rod and hinge. The fit is good enough to make it look like the pieces are soldered together and a part of the hinge.




Better news is that the gate swings with no interference.

More in a few.

[ACL1504]

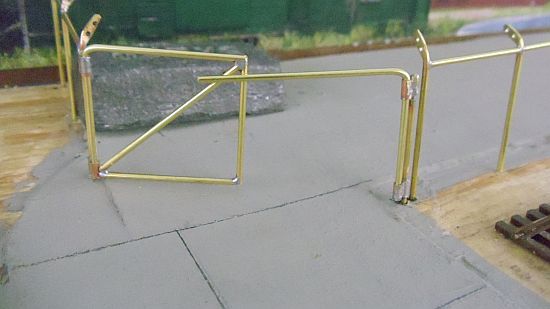

My faulty measuring caused another problem. The right gate post was cut to short making the right gate fit lower than the left gate.




I wasn't going to make a new post and hinges so I simply soldered on a short rod piece to the bottom. I then fit it in the hole and cut off a little on the bottom until it was level with the left side.



More in a few.

[ACL1504]

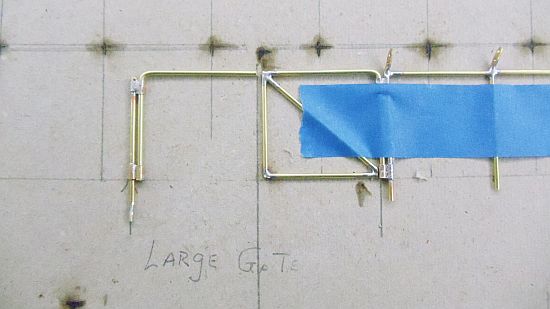

I started making the right gate (it shows it on the left).  I made the gates in reverse on the pattern as the top portion of the fence post with the angle wouldn't lay flat.

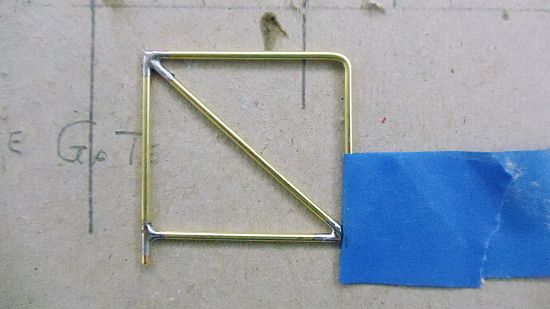

I made sure the two gate halves were level.





More in a few.
