KC's Workshop X's 2 - Third build Challenge

[ACL1504]

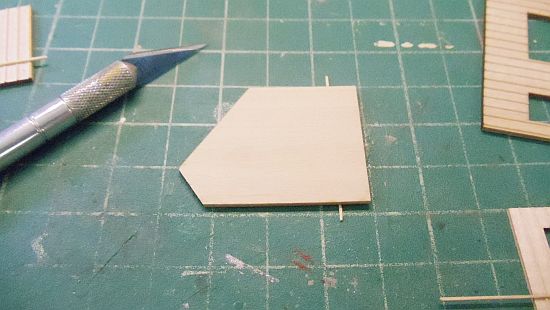

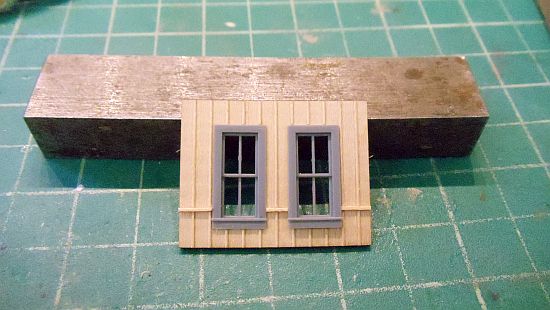

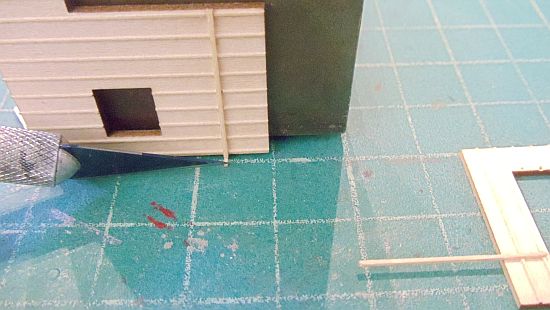

I trimmed the 2x2's so they fit snug against the windows.

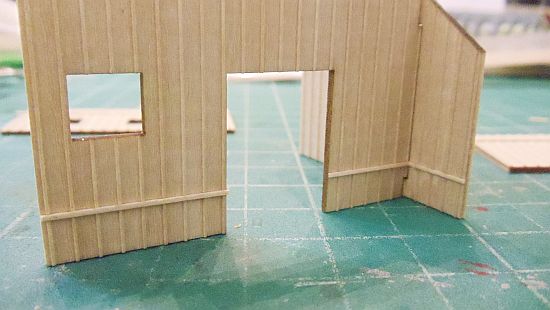

The next photo shows the rear of the left wall section. Note I left some of the 2x2 extend over the ends so I can trim or fit it to the adjoining wall section.



More in a few.

[ACL1504]

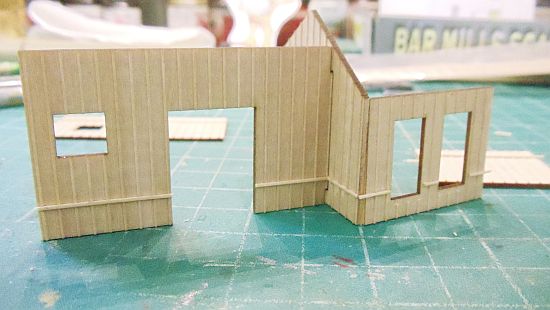

I put two adjoining walls together and trimmed the 2x2's.



Here is a view of two walls and the 2x2's.



More in a few.

[ACL1504]

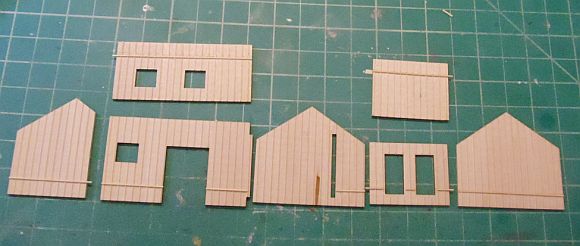

All walls now have the 2x2's glued in place. This project took me about 4 hours extra work. Again, I think it will be well worth the time as I now have better control of where the paint flows for the two color separation.




I will cover wall bracing tomorrow.

[PRR Modeler]

Very interesting Tom.

[jerryrbeach]

Tom,
Now I have yet another reason to follow your build closely.  The Delaware & Northern, which I model loosely, used a belt rail on all their stations.  The smaller stations were of board and batten construction, both above and below the belt rail.  The siding was all one color, but the belt rail was painted in the trim color to match the doors and windows.  So, while you are using the belt rail to get a clean color separation, the procedure you used to construct it is something I can adopt when modeling the D&N stations.
I love following your build threads, they are always a learning experience for me.  You continue to not only think outside the box, but to expand the box with your modeling.

[ACL1504]

Very interesting Tom.

Curt,

Thanks for following along my friend.

Tom

[ACL1504]

Tom,
Now I have yet another reason to follow your build closely.  The Delaware & Northern, which I model loosely, used a belt rail on all their stations.  The smaller stations were of board and batten construction, both above and below the belt rail.  The siding was all one color, but the belt rail was painted in the trim color to match the doors and windows.  So, while you are using the belt rail to get a clean color separation, the procedure you used to construct it is something I can adopt when modeling the D&N stations.
I love following your build threads, they are always a learning experience for me.  You continue to not only think outside the box, but to expand the box with your modeling.

Jerry,

"Belt rail" was the term I was trying to think of. I could only think of chair rail and didn't want to say that.

Thank you for the very generous and kind compliment on the build and the added belt rail part. I always try to make a structure "my version" when building.

I'm glad you are able to use this for your D&N RR board and batten stations.

Tom

[engine909]

Very well done Tom.
ed

[donatode]

[ACL1504]

Very well done Tom.
ed

Ed,

Thank you kind sir, appreciate the kind support on the build. I twas a fun build.

Tom

[ACL1504]

Donato,

I'd say you are all eyes on this one. Look it over by all means.

Tom

[ACL1504]

In the instructions Kenny mentions bracing and corner trim. He suggested placing the bracing along the side edges of the peaked walls.

However, the front and rear wall sections fit between the two peaked ends. If you place the bracing along the side edges, the front and rear walls won't fit.

The instructions show the front and rear walls set INSIDE the two side/peaked walls.

Corner trim is mentioned as well but no corner trim is shown in the instructions. So brace your walls where the bracing does not interfere with the adjoining walls.

If you choose not to use the corner trim as I did, then be sure to paint the corresponding wall edges accordingly.

Here is how I braced the back of the walls.





Prior to bracing the walls, I test fit the walls to each other to determine where the bracing should be glued.

More in a few.

[ACL1504]

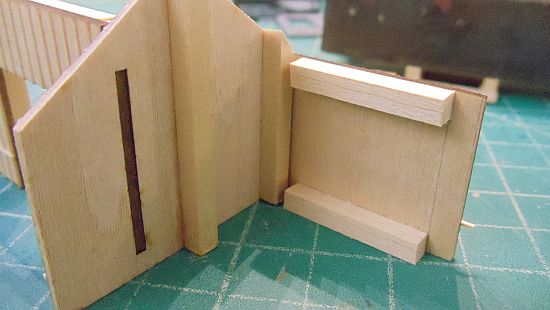

The inside peaked wall has a slot cut in and the front loading dock wall has a tab. The tab fits into the slot for proper alignment.
