C. C. Crow Stone Church - First Annual Raymo Build Challenge 2016

[S&S RR]

Before I get started on the cutting process here is the label from the Smooth-On plastic that I used for this casting.  I'm really happy with this product.  This is my third batch of it and so far it works great.

[S&S RR]

Here is the product numbers and specifications if you want to try it.

[S&S RR]

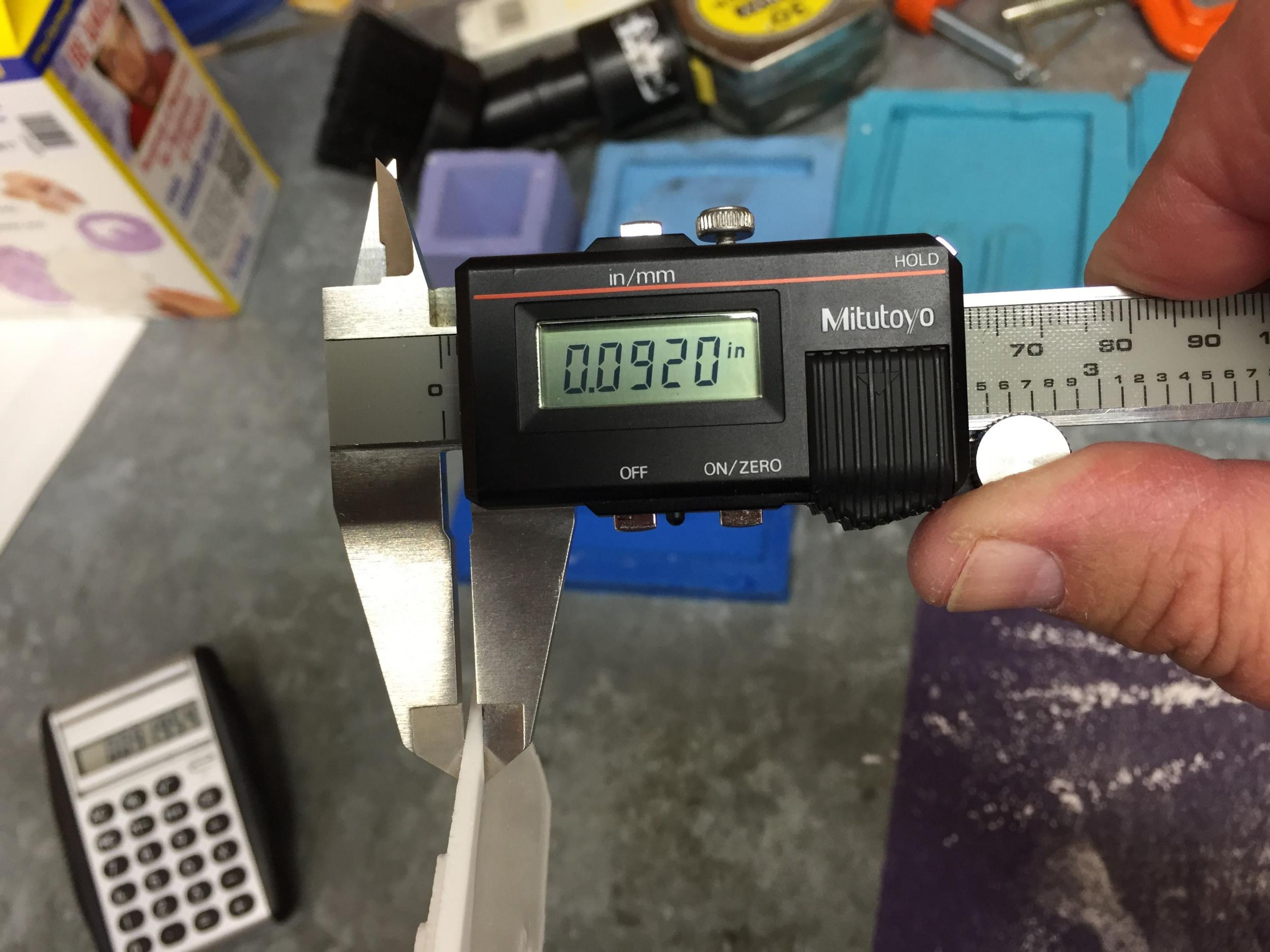

The first step in fixing the castings was to sand down the bottom step to a even 8 inches HO all the way across
the casting.  I used a digital micrometer to monitor my progress until I got it where I wanted it.  0.092 inches is a scale 8 inches.

[S&S RR]

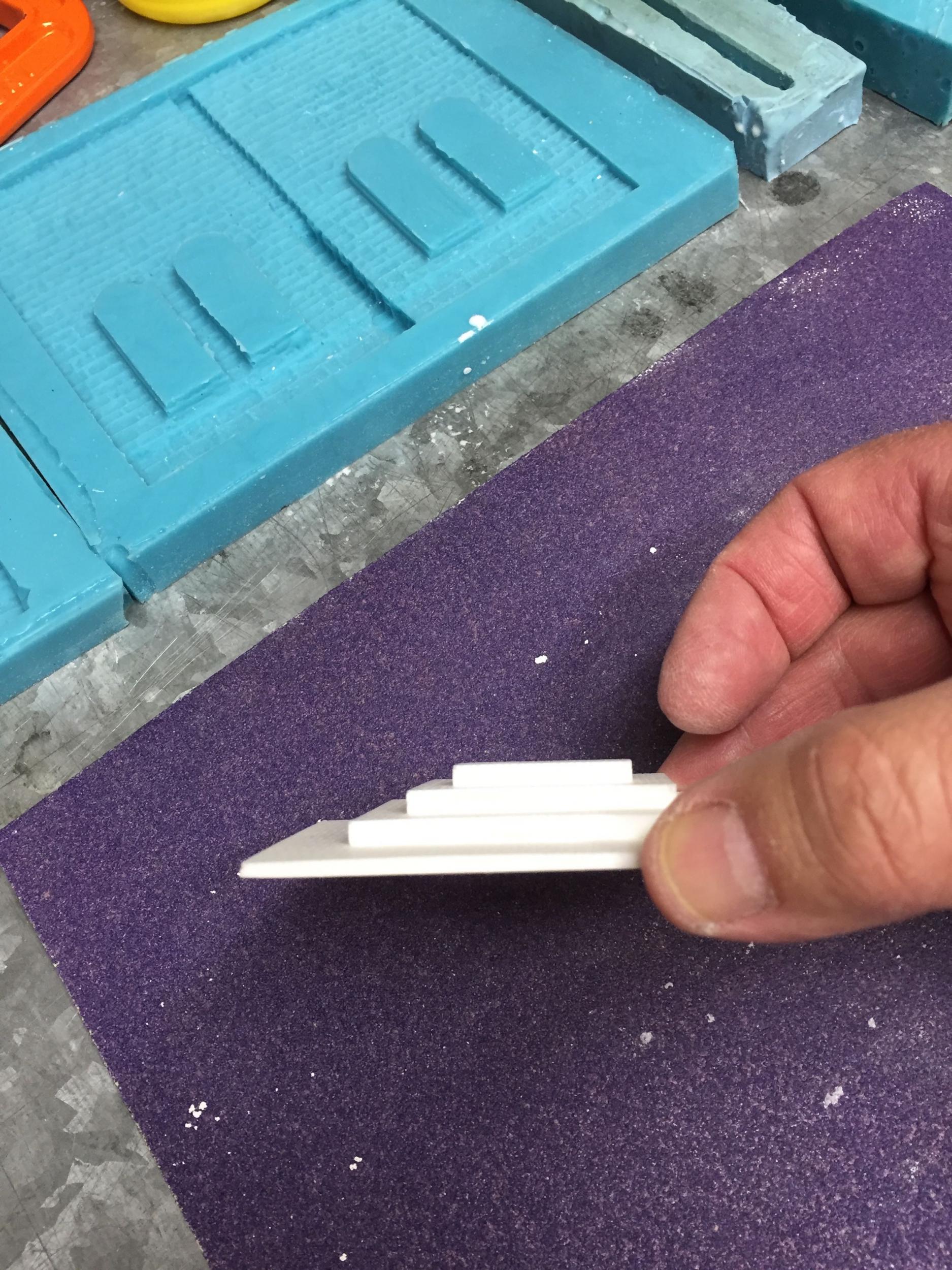

Here is a side view of the casting when I was getting close with the bottom step. You can see how out of scale the three upper steps are at this point.

[S&S RR]

Next it was time to get out the jewelers saw - a very small thin bladed coping saw.

[S&S RR]

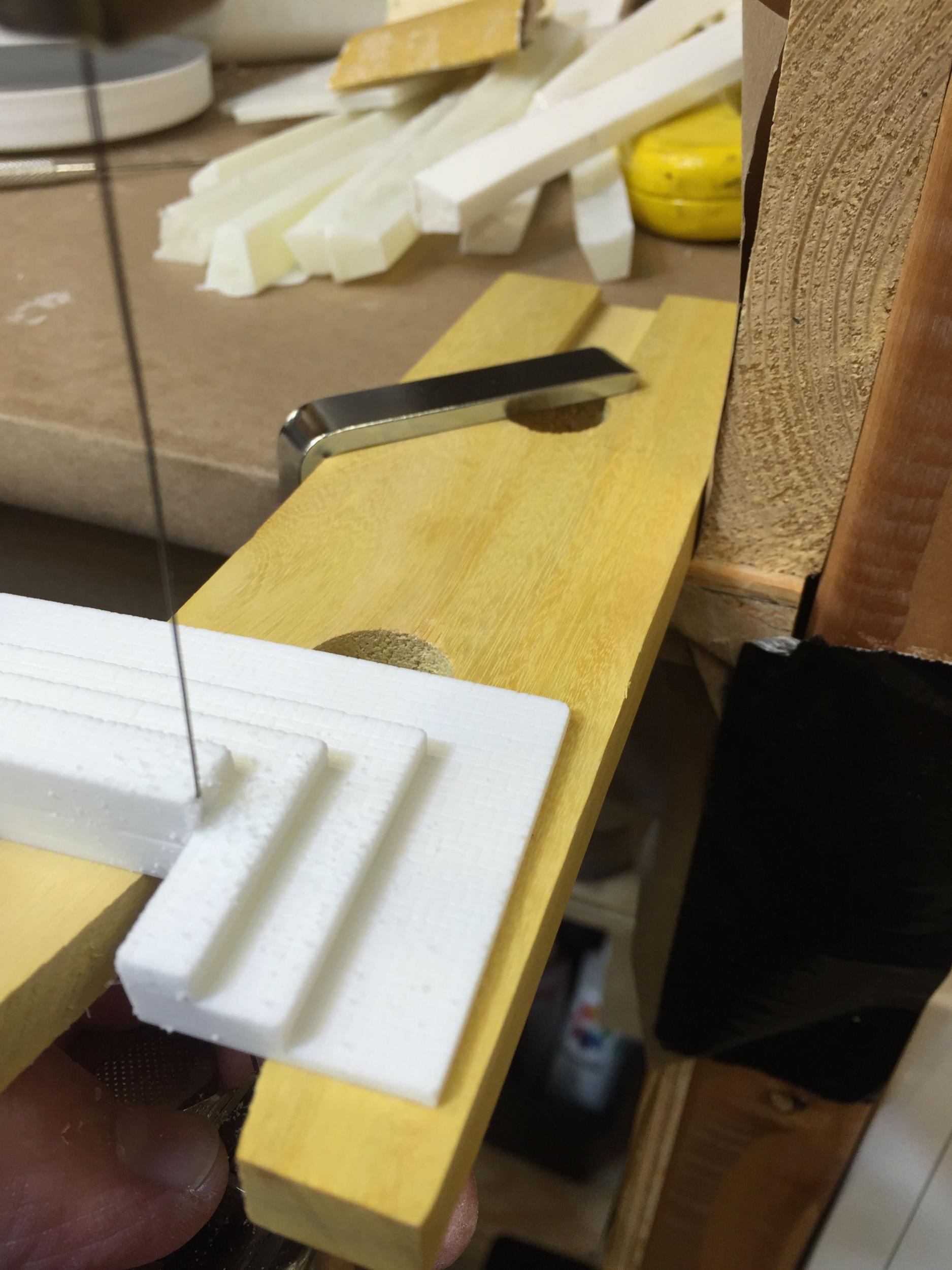

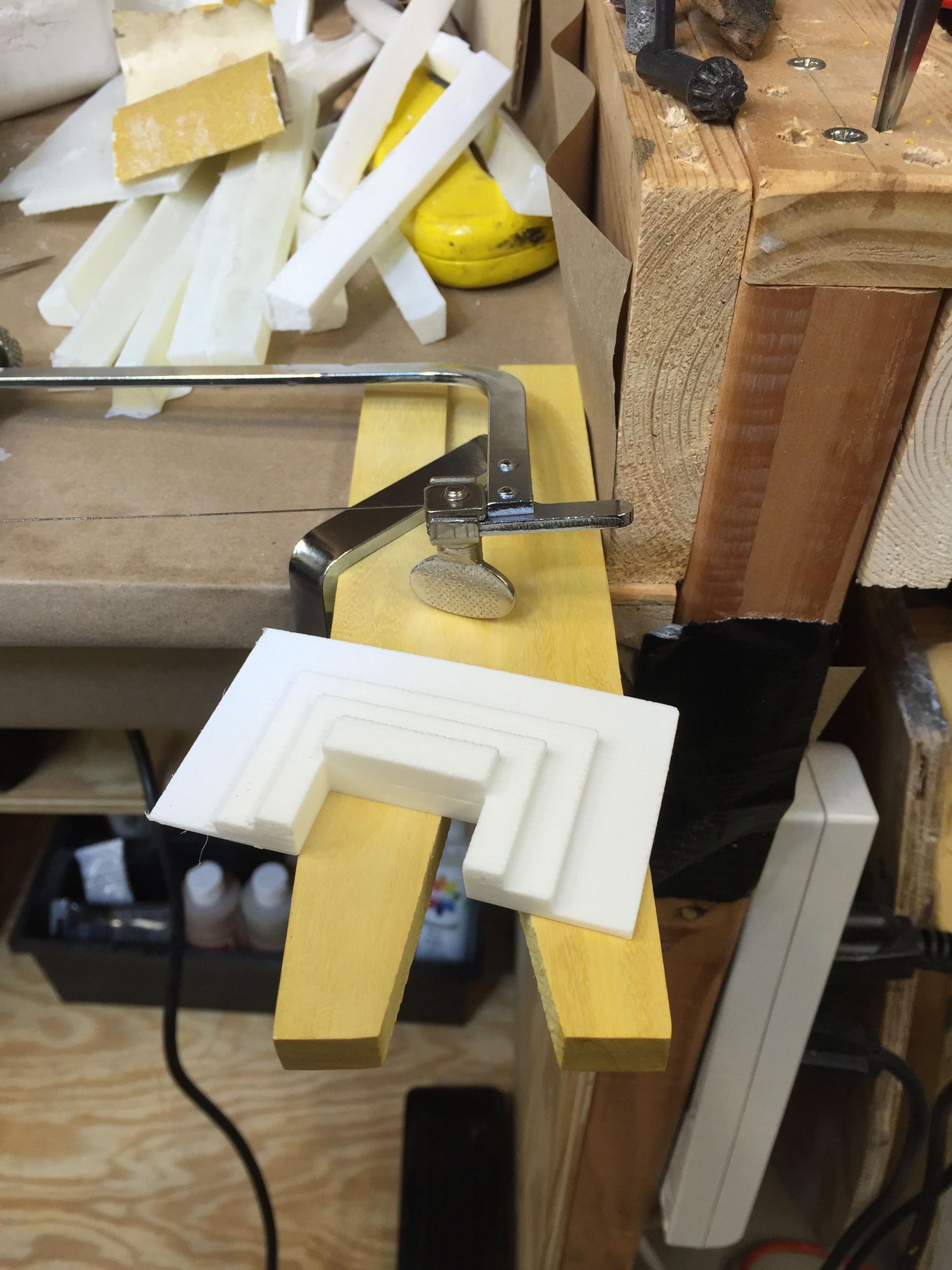

Here is a picture of the cutting process as I got started.

[S&S RR]

Note: At this point I was trying to keep to the Bob Butts standard of build threads and show you the cutting process while I was doing it  with my hands doing the work etc. etc. Well, as I snapped this picture with the camera in my other hand I broke the blade on the jewelers saw. Challenge number 2.

[S&S RR]

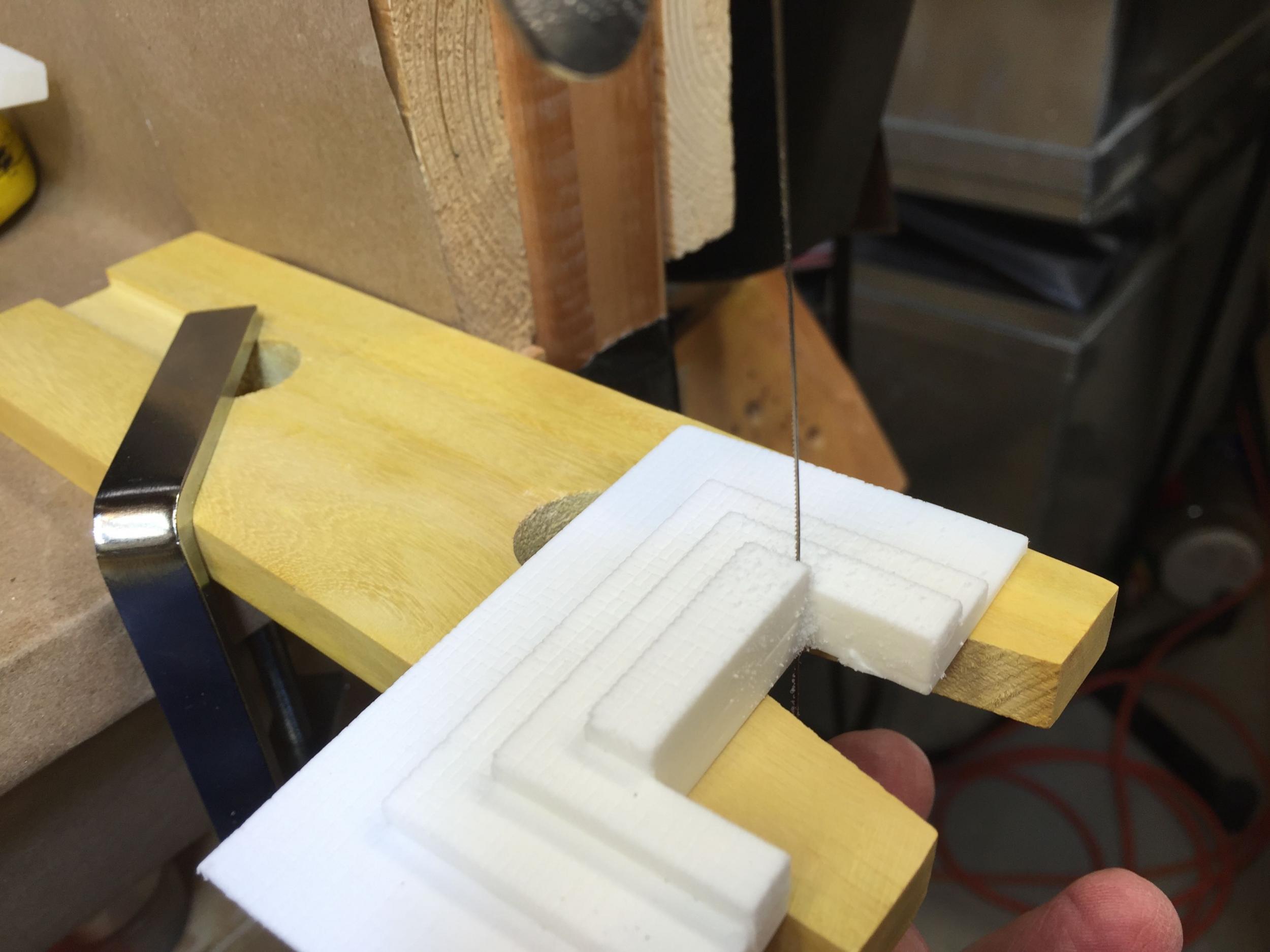

Here is a second picture, yes it's overkill but these pictures cost me a saw blade.

[S&S RR]

I know now the Bob is mounting his camera on a tripod and pushing the shutter release with a remote on the floor with his foot.  Right Bob?

[S&S RR]

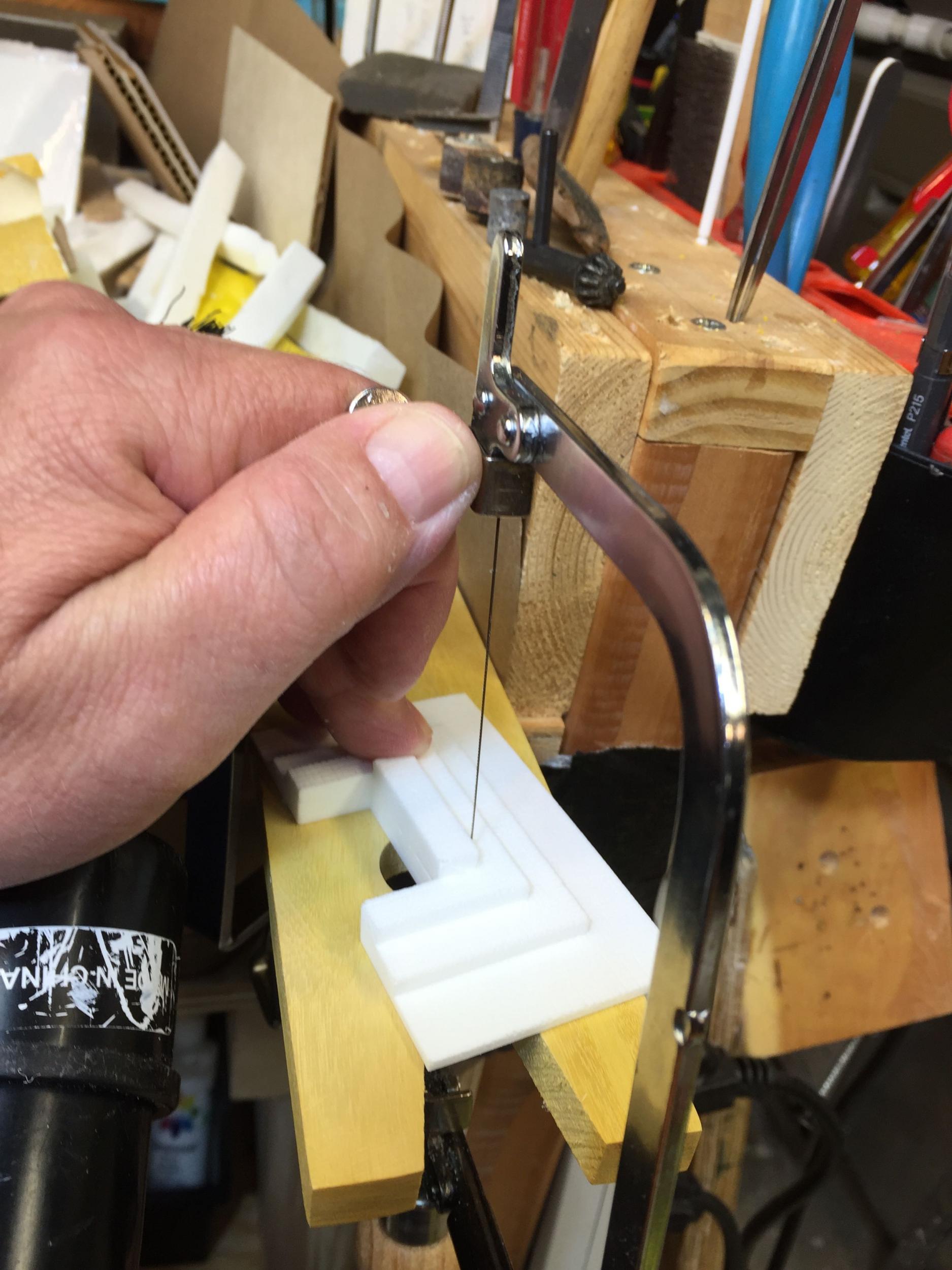

So after replacing the blade - I made my way around the corner and was making good progress when I got the bright idea to take another picture.  Broke the second blade.

[S&S RR]

So from here on out you are getting pictures at the end of each step.  Here we have the first casting piece ready to be sanded to proper size.

[S&S RR]

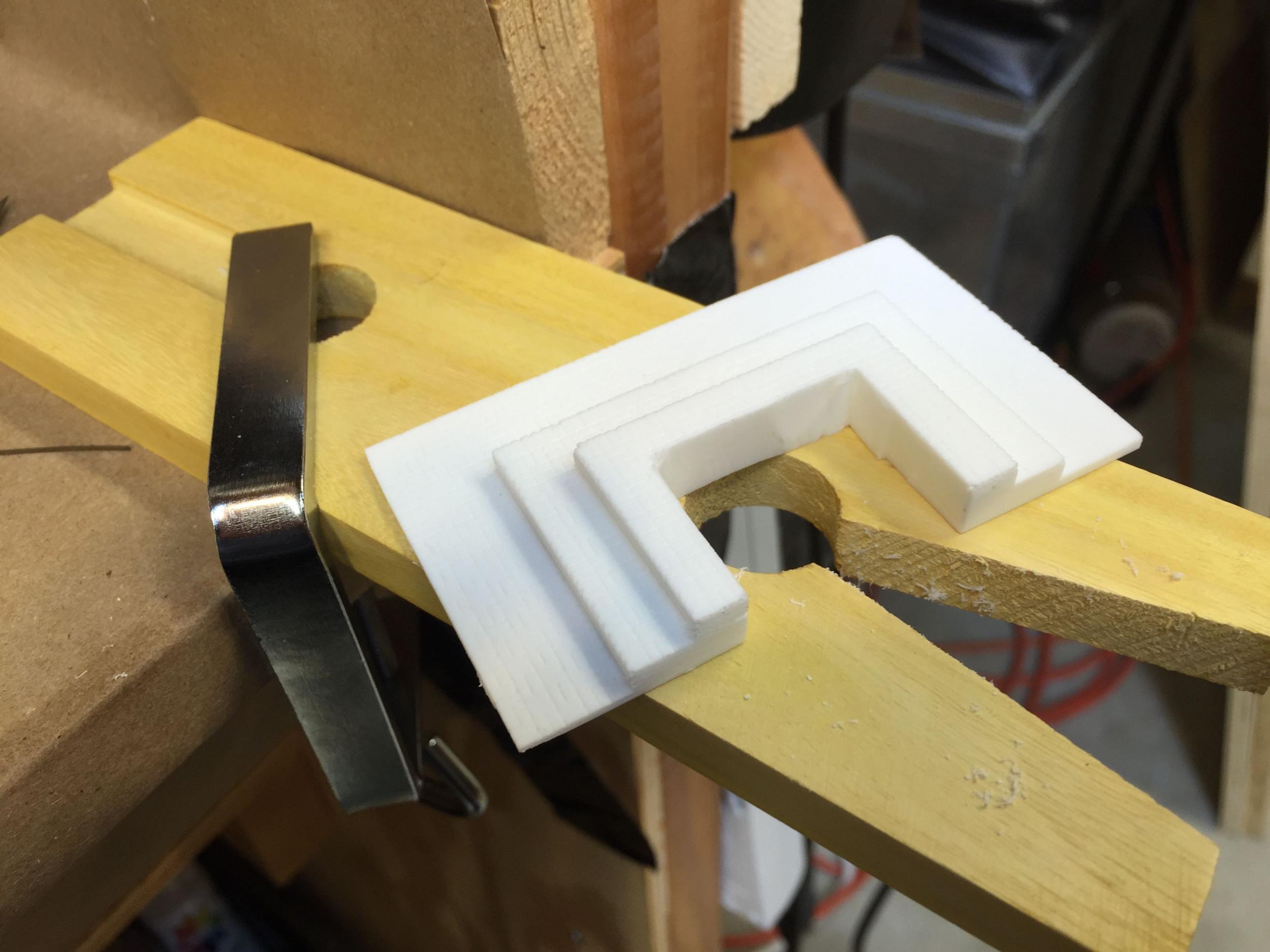

Here is the master casting with that block removed.

[S&S RR]

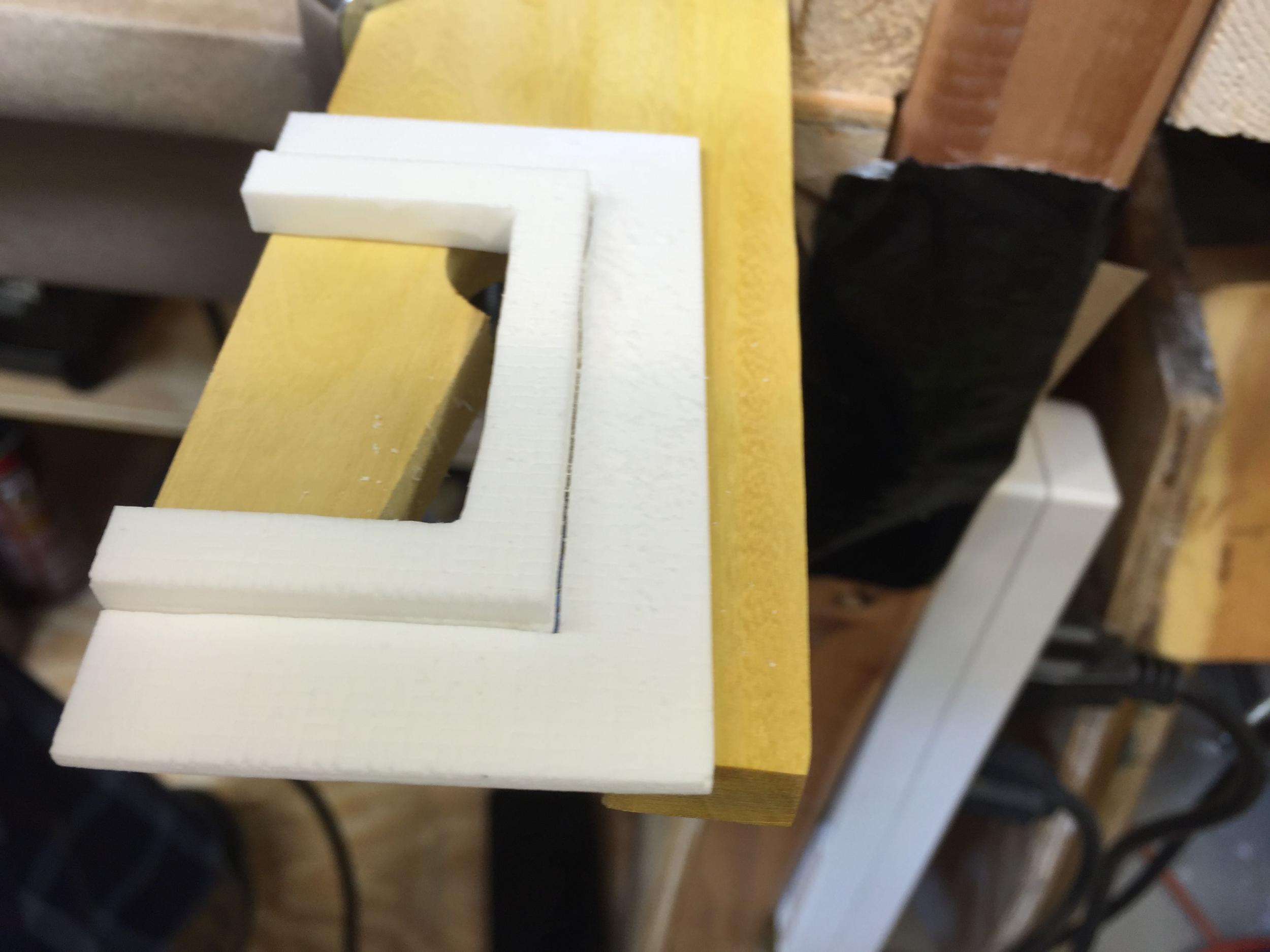

Here is the master casting after the next block or step is removed.

[S&S RR]

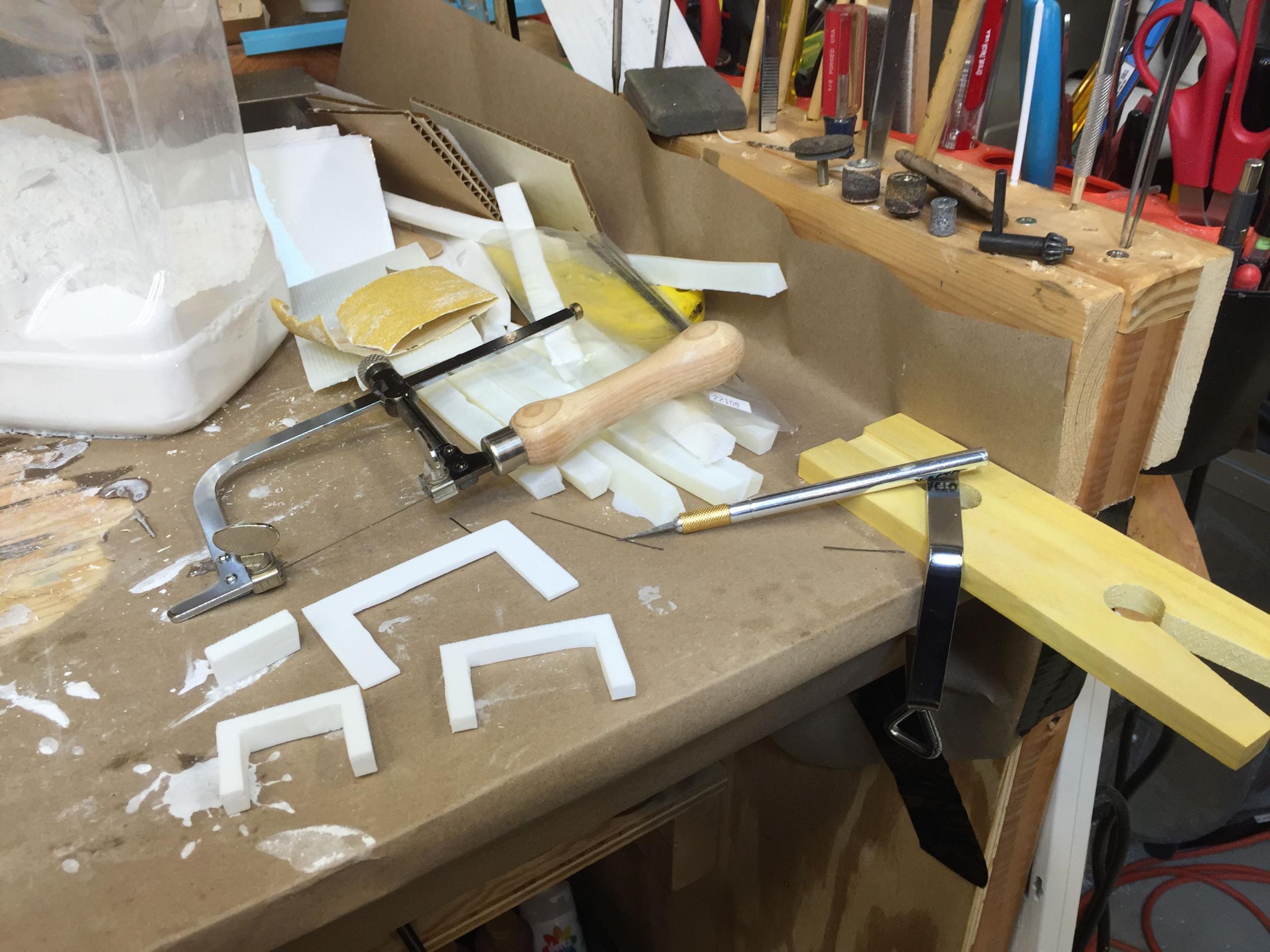

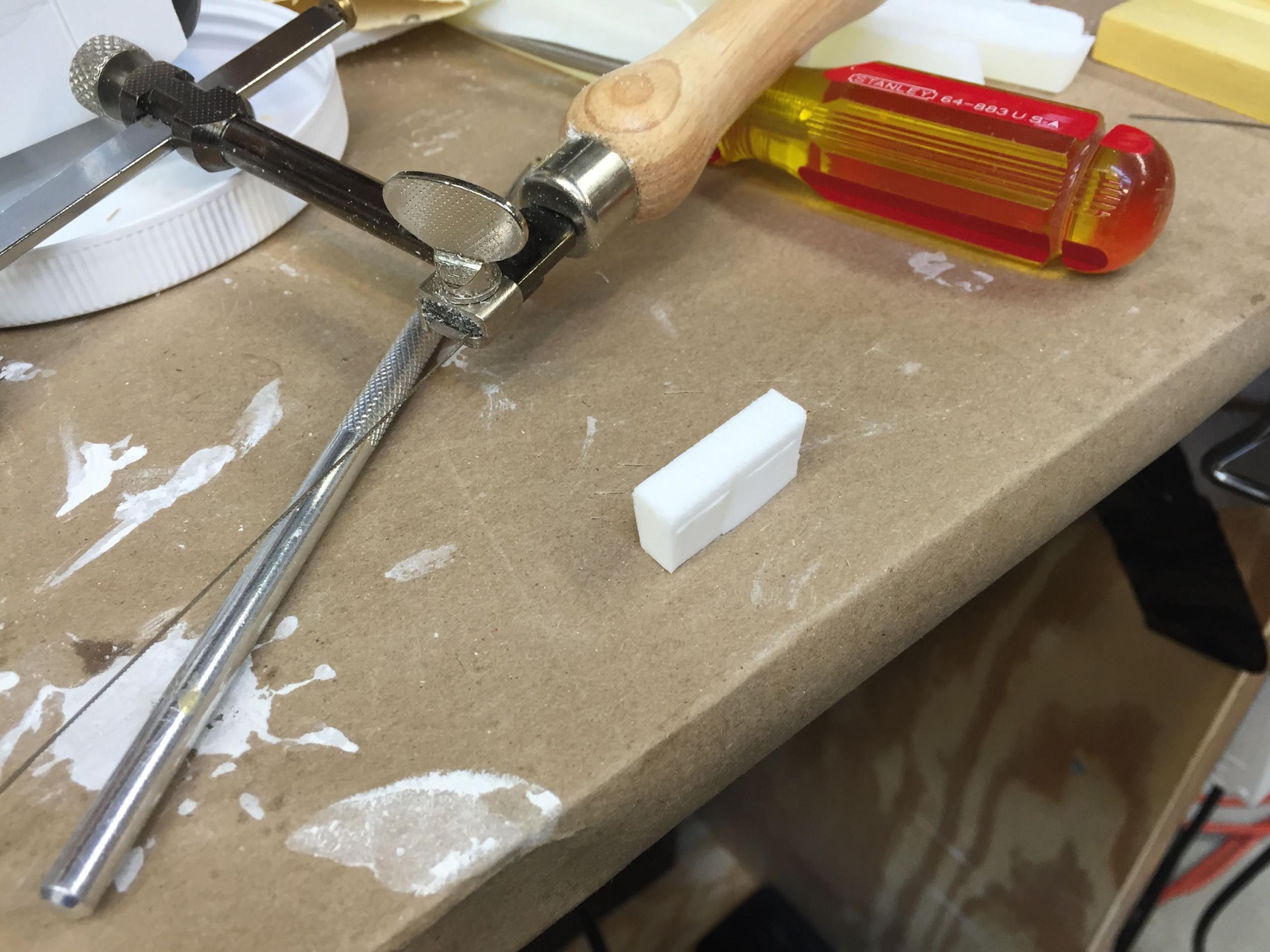

Here is the four pieces of the casting ready to be cleaned up and sized. Yes - I finished the process with a smaller second blade.  Notice the pieces of blade on the workbench.

[S&S RR]

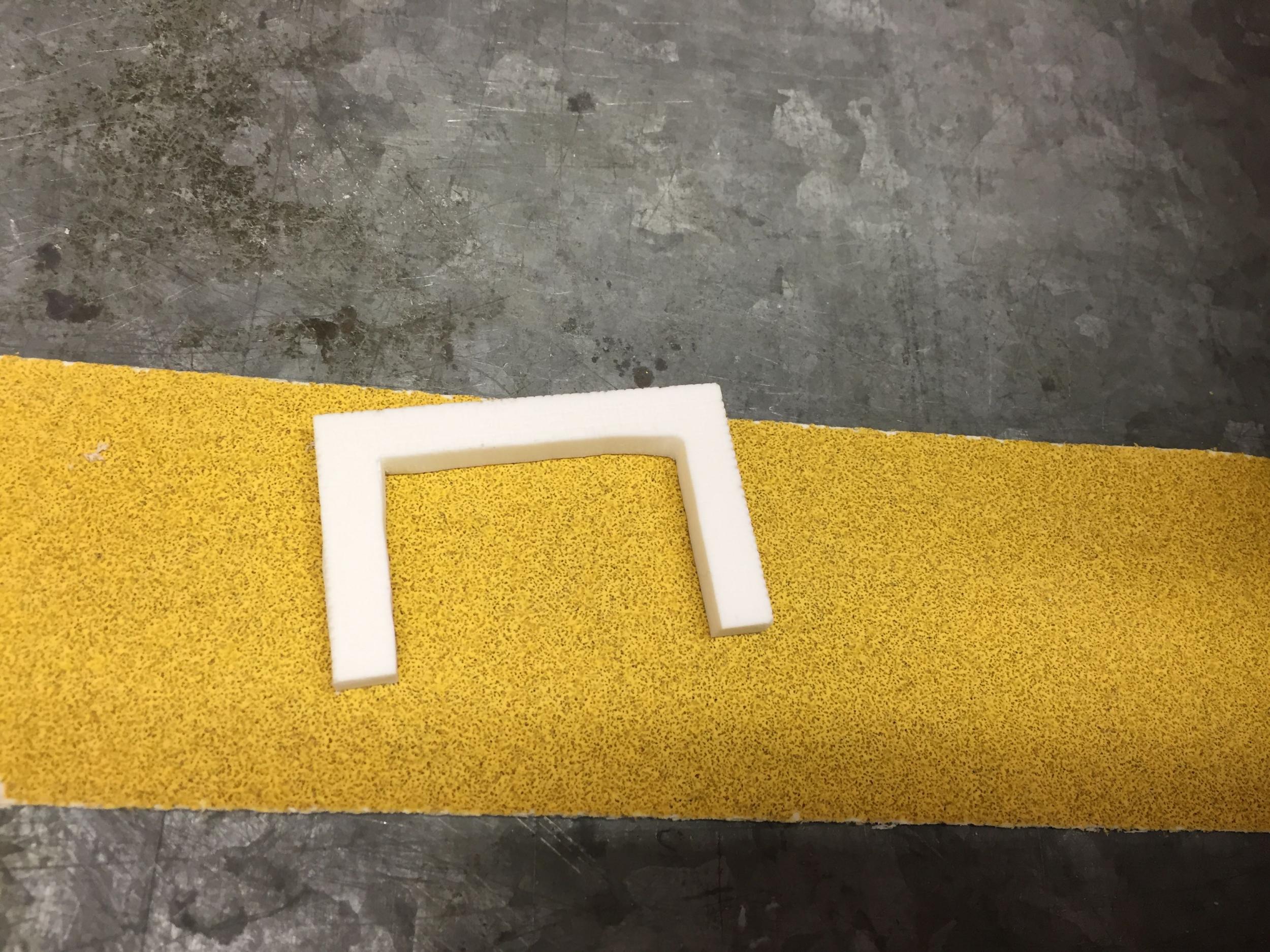

Each step had to be sanded down from the back side until it was 8 inches HO higher than the previous step. I did this with a piece of adhesive backed sand paper mounted on my workbench.
