The Atlantic and Southern Build, Part 1

[ACL1504]

Okay now, back to the build.

I'm hoping by now everyone knows what I intend to do with the area where I had the desk. I also plan on putting a roadway bridge in the same area.



I removed the track and the plywood decking.



I then cut a curved section from the existing layout.




Continued in a few.

[ACL1504]

I removed the track and then the decking from this area also.





I then cut a new piece of plywood and used 1X4 blocks to support the new riverbed.


The new riverbed is 4.5" above the staging level tracks and 5.5" below the second level tracks. this gives me a little area where I can have some sort of negative scenery on the second level.

Continued in a few.

[ACL1504]

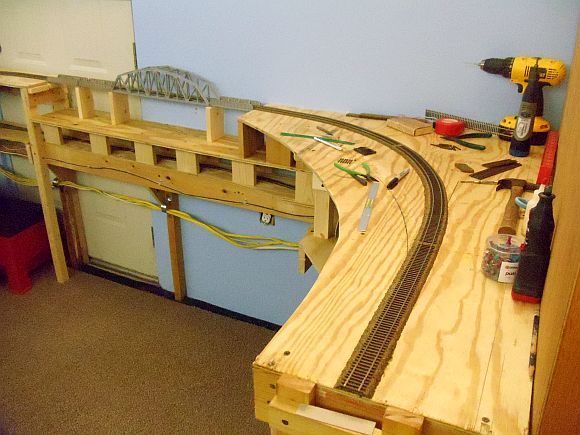

In the above photo you may have noticed the insulated wiring under the new section of the layout. Two years ago I moved the wall switch from the wall by the door. The door is blocked off and the light switch couldn't be accessed behind the third level proposed scenery.

I cut a section of drywall from the wall socket and ran the wires out below the staging level.



The wires were bundled and run under the staging level to the new wall switch area as I mentioned. The exposed wall switch was covered with a new cover plate.



The new wall switch area is just under the staging level bench work with easy access to the switches.



Continued in a few.

[ACL1504]

I forgot to show these two photos of the area I removed from the second level in preparation of the new bridge.





Continued in a few.

[ACL1504]

I'll have to finish this posting another day. The Forum won't let me access my photo galleries. Not sure of the problem.

Tom

[ACL1504]

Okay, some internal server issue but I rebooted and now good to go.

I replaced the cork roadbed and then added the track.



I added the track from the bridge and then made the necessary adjustments to get the track on the roadbed and the bridge track level.



Continued in a few.

[ACL1504]

Here is how it looks from the side and bird's eye view. The track is level and I've run several trains over the area with no problems.





I still need to add the inner support rails and more little details.

Continued in a few.

[ACL1504]

Here is how it will hopefully look with the roadway bridge in place.







Thanks for following the progress.
